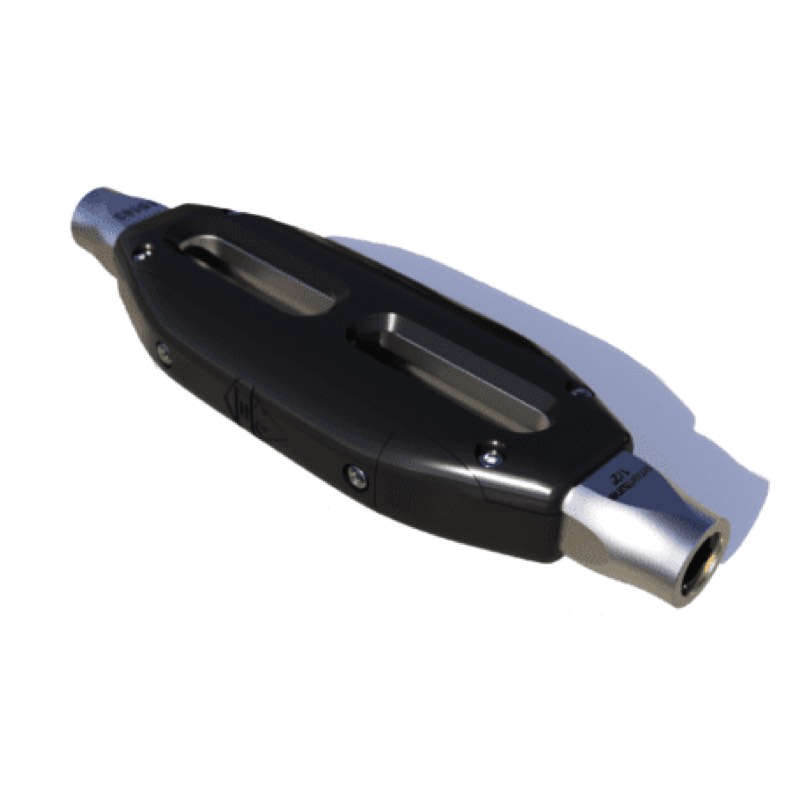

Cyclops Marine smarttune² 1/2" – Wireless Load Sensor
The Cyclops Marine smarttune² 1/2" is a high-precision wireless load sensor, designed to replace standard turnbuckles and provide real-time rigging load data with ±1% accuracy. Optimised for performance keelboats, club racers, and small offshore yachts, it enables sailors to fine-tune rig tension for repeatable, optimised sail trim and maximum performance. With seamless wireless integration, easy installation, and a rugged marine-grade design, the smarttune² 1/2" is an essential upgrade for sailors looking to gain a competitive edge.
Key Features & Benefits
✅ Precision Load Monitoring – Measures loads with ±1% accuracy of the Maximum Working Load (MWL), allowing for data-driven rigging adjustments.
✅ Quick & Easy Installation – Replaces an existing turnbuckle with no complex modifications, making it simple to retro-fit.
✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, enabling live load monitoring and data logging.
✅ Extended Battery Life – Operates for up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring long-term reliability.
✅ Wireless Charging – Charges effortlessly using a Cyclops wireless charging pad, with LED indicators for charge status.
✅ Rugged & Waterproof – Built with an IP68-rated waterproof housing, ensuring durability in the harshest marine environments.
✅ Customisable Data Frequency – Factory-set at 1Hz, with the option for custom frequency settings.
Technical Specifications
- Calibrated Load: 4 tonnes
- Material: 316L stainless steel body, brass-threaded inserts
- Accuracy: ±1% of MWL between 0-40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smarttune² 1/2" Fits into Your Sailing Setup
The smarttune² 1/2" is ideal for performance keelboats, club racers, and small offshore yachts, making it a perfect fit for:
✔ Shrouds and sidestays – Maintain repeatable rig tension for optimised performance.
✔ Backstays and forestays – Ensure precise mast bend and sail trim adjustments.
✔ Race tuning – Track and refine load settings for consistent, high-speed sailing.
Safety and Reliability
- Overload Protection: Avoid exceeding 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
- Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.
Unlock Performance with Real-Time Load Data
The Cyclops Marine smarttune² 1/2" transforms rig tuning by providing instant, wireless load intelligence, making it an essential tool for performance-focused sailors. Whether fine-tuning rig settings for racing or ensuring safe rig tension, this precision-engineered sensor delivers the data needed to sail faster and smarter.
Upgrade your rigging today and gain a competitive edge with real-time load intelligence.
Spezifikationen
| Gesamtbreite (mm) | 61 |
| Gesamthöhe (mm) | 26 |
| Thread size | 1/2" |
| Gesamtlänge (mm) | 165 |
| Material | Nitronic 60 |
| SWL (kg) | 2000 |
| NBL (kg) | 6000 |
| Garantie (Jahren) | 2 |
| Wasserdichtigkeit | IP67 |
| Batterie Lebensdauer | 5 Montate |
| Batterietyp | 2x AAA |
| Gewicht (g) | 390 |
