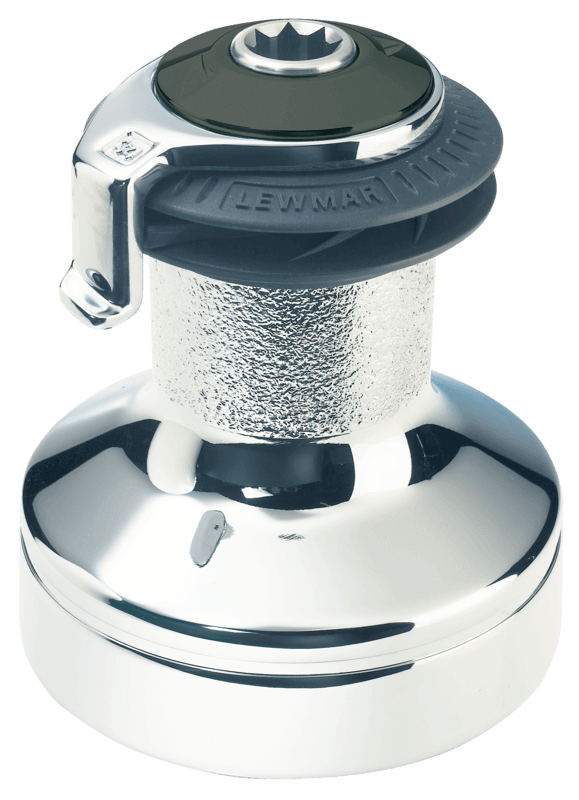

Specifications for Lewmar 65 2-Speed Self-Tailing Chromed Bronze Ocean Winch
| Empfohlener max. Leinendurchmesser (mm) | 18 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 65 |
| Style | Selbstholend |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 275 |
| Line recovery per rotation - 2nd gear (mm) | 56 |
| Basis Ø (mm) | 231 |
| Trommel Ø (mm) | 118 |
| Höhe (mm) | 271 |
| Leinen Einlaufhöhe (mm) | 121,5 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 3748 |
| Garantie (Jahren) | 3 |
| B (mm) | 231 |
| D (mm) | 118 |
| H (mm) | 271 |
| L (mm) | 121,5 |
| Getriebuntersetzung 1. Gang (X : 1) | 3,1 |
| Getriebuntersetzung 2. Gang (X : 1) | 15,3 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,4 |
| Kraftuntersetzung 2. Gang (X : 1) | 66 |
| Gewicht (g) | 23800 |
Lewmar's Self-Tailing Ocean Chromed Bronze Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 18 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Größe | 65 |
| Style | Selbstholend |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 275 |
| Line recovery per rotation - 2nd gear (mm) | 56 |
| Basis Ø (mm) | 231 |
| Trommel Ø (mm) | 118 |
| Höhe (mm) | 271 |
| Leinen Einlaufhöhe (mm) | 121,5 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 3748 |
| Garantie (Jahren) | 3 |
| B (mm) | 231 |
| D (mm) | 118 |
| H (mm) | 271 |
| L (mm) | 121,5 |
| Getriebuntersetzung 1. Gang (X : 1) | 3,1 |
| Getriebuntersetzung 2. Gang (X : 1) | 15,3 |
| Kraftuntersetzung 1. Gang (X : 1) | 13,4 |
| Kraftuntersetzung 2. Gang (X : 1) | 66 |
| Gewicht (g) | 23800 |
