Specifications for Wichard Captive pin bow shackle - Dia 8 mm
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 9 |
| SWL (kg) | 1000 |
| NBL (kg) | 3700 |
| A (mm) | 37 |
| B (mm) | 16 |
| C (mm) | 9 |
| D (mm) | 18 |
| E (mm) | 8 |
| M (mm) | 42 |
| Gewicht (g) | 75 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

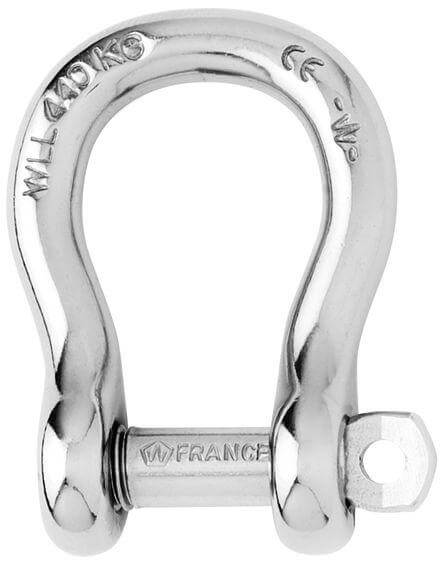

Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
To be used when ample room is required
Possibility to attach several lines or cables
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 9 |
| SWL (kg) | 1000 |
| NBL (kg) | 3700 |
| A (mm) | 37 |
| B (mm) | 16 |
| C (mm) | 9 |
| D (mm) | 18 |
| E (mm) | 8 |
| M (mm) | 42 |
| Gewicht (g) | 75 |
