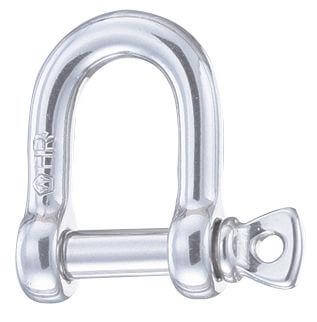

Wichard HR D shackle - Dia 6 mm

https://www.upffront.com/web/image/product.template/30042/image_1920?unique=06f5576

20,19 € 20.19 EUR 22,44 €

18,86 €

10% Off

Available on request

spring sale upffront sailing systems

04
Days
:
16
Hours
:
56
Mins
:
23
Secs
  • Marke
  • Material
  • Material Grade
  • Pin Ø (mm)
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • F (mm)
  • G (mm)
  • Gewicht (g)

Diese Kombination existiert nicht.

Einheit(en)
ADD TO CART
Product Image

Wichard HR D shackle - Dia 6 mm

22,44 € 20,19 €
10% Off
SKU:
N/A
Brand: Wichard

30-day money-back

 14-day returns

 Express shipping available

Share :

Forged D shackle in HR stainless steel grade (17,4 PH)

Outstanding working and breaking load

A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


Applications

Applications requesting high loads

Standard applications of shackle

Attachment applications: blocks, head …

Do not use for mooring applications

Spezifikationen

Material Edelstahl
Material Grade AISI 630 (17-4 / HR)
Pin Ø (mm) 6
SWL (kg) 1040
NBL (kg) 2300
A (mm) 20
B (mm) 12
C (mm) 6
D (mm) 16
E (mm) 7
F (mm) 46
G (mm) 46
Gewicht (g) 24
