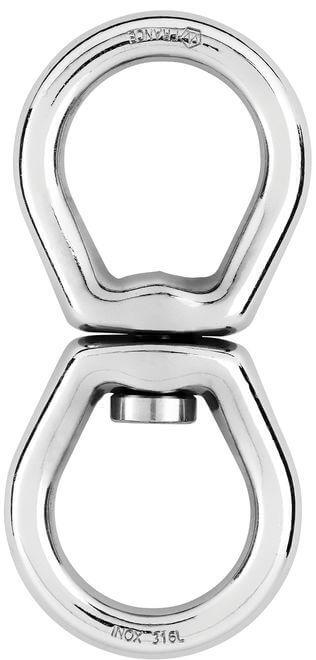

Specifications for Wichard Mooring swivel - Length: 150 mm
| Gesamtlänge (mm) | 150 |
| Material | Edelstahl |
| Material Grade | AISI 316L |
| SWL (kg) | 2960 |
| NBL (kg) | 5500 |
| A (mm) | 44 |
| B (mm) | 41 |
| Gewicht (g) | 415 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Mooring swivel forged in grade 316 stainless steel to support permanent immersion
High resistance to corrosion
Applications
For mooring application
