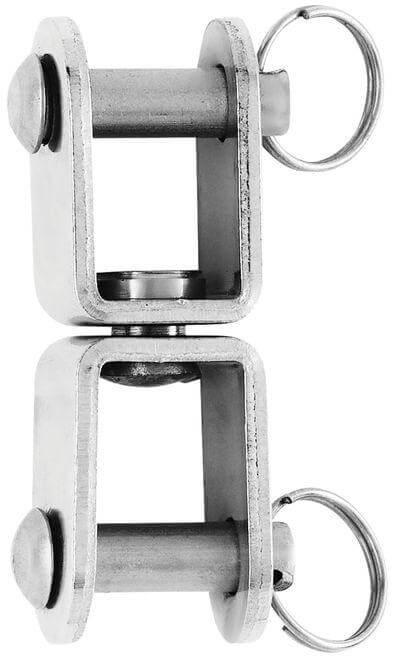

Specifications for Wichard Swivel - Fork / Fork - Cambered plate - Length: 60 mm
| Gesamtlänge (mm) | 60 |
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Pin Ø (mm) | 12 |
| SWL (kg) | 720 |
| NBL (kg) | 1400 |
| A (mm) | 15 |
| B (mm) | 13 |
| C (mm) | 12 |
| D (mm) | 12 |
| Gewicht (g) | 52 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Fork-Fork swivel (not forged)
Cost savings
Applications
For dinghies
Low load applications (tiller extensions…)
Do not use for mooring applications
