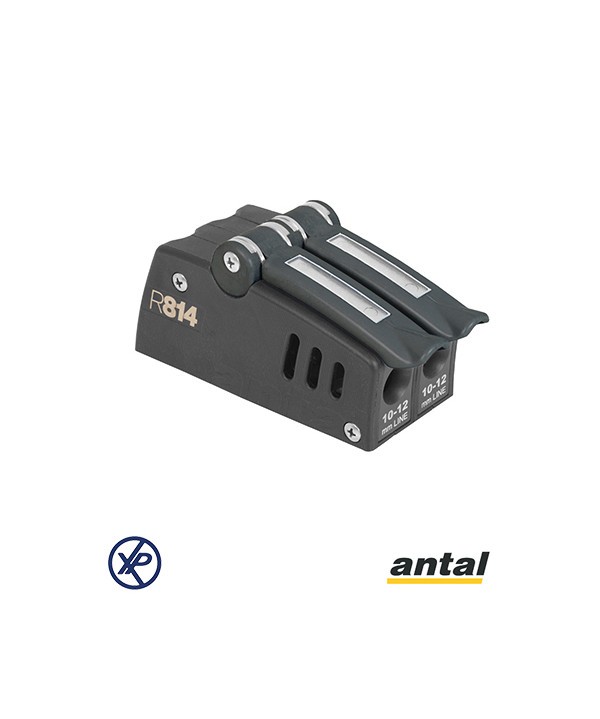

Specifications for Antal V-CAM R814 CLUTCH 8/10 DOUBLE
| Width (mm) | 65.5 |
| Fixing hole Ø (mm) | 8 |
| Length (mm) | 148.4 |
| Cordage recommandé – Ø Max (mm) | 10 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Hauteur (mm) | 78 |
| Charge de travail (kg) | 850 |
| A (mm) | 25 |
| B (mm) | 105 |
| C (mm) | 17.2 |
The new series of Antal clamps for loads of up to 1500 kg. Equipped with the large V-cam: the Antal V-Grip system.
Three sizes for 8-10, 10-12 and 12-14 mm ropes in five versions: single, double, triple, quadruple and horizontally mounted, with batteries of five or more on request.
The V-Grip is an end-locking system patented by Antal. The principle is based on pressure applied to 3 sides of the rope for greater grip and therefore less pressure, which limits wear and tear during manoeuvres. The rope can be retrieved under load with the rope clamp handle closed. The rope locks automatically in the new position without slipping.
The Antal mechanism allows the rope to be released under extreme conditions, but it is preferable to use the winch to limit rope wear.
Spécifications
| Width (mm) | 65.5 |
| Fixing hole Ø (mm) | 8 |
| Length (mm) | 148.4 |
| Cordage recommandé – Ø Max (mm) | 10 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Hauteur (mm) | 78 |
| Charge de travail (kg) | 850 |
| A (mm) | 25 |
| B (mm) | 105 |
| C (mm) | 17.2 |
