Specifications for Andersen 28 2-Speed Self-Tailing Stainless Steel Winch
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 28 |
| Style | Self-Tailing |
| Matériau | Acier inoxydable |
| Diamètre de l'embase | 125 |
| Ø tourelle (mm) | 70 |
| Hauteur (mm) | 147 |
| Hauteur d’entrée du cordage (mm) | 65 |
| Vitesse (manuelle) | 2 vitesses |
| A (mm) | 70 |
| B (mm) | 125 |
| C (mm) | 147 |
| D (mm) | 65 |
| Vitesse 1 (X : 1) | 1,3 |
| Vitesse 2 (X : 1) | 4 |
| Puissance 1 (X : 1) | 9,5 |
| Puissance 2 (X : 1) | 28,6 |
| Poids (g) | 3900 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 28ST v4.0 _ 28ST FS v4.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 28 _ 34 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|

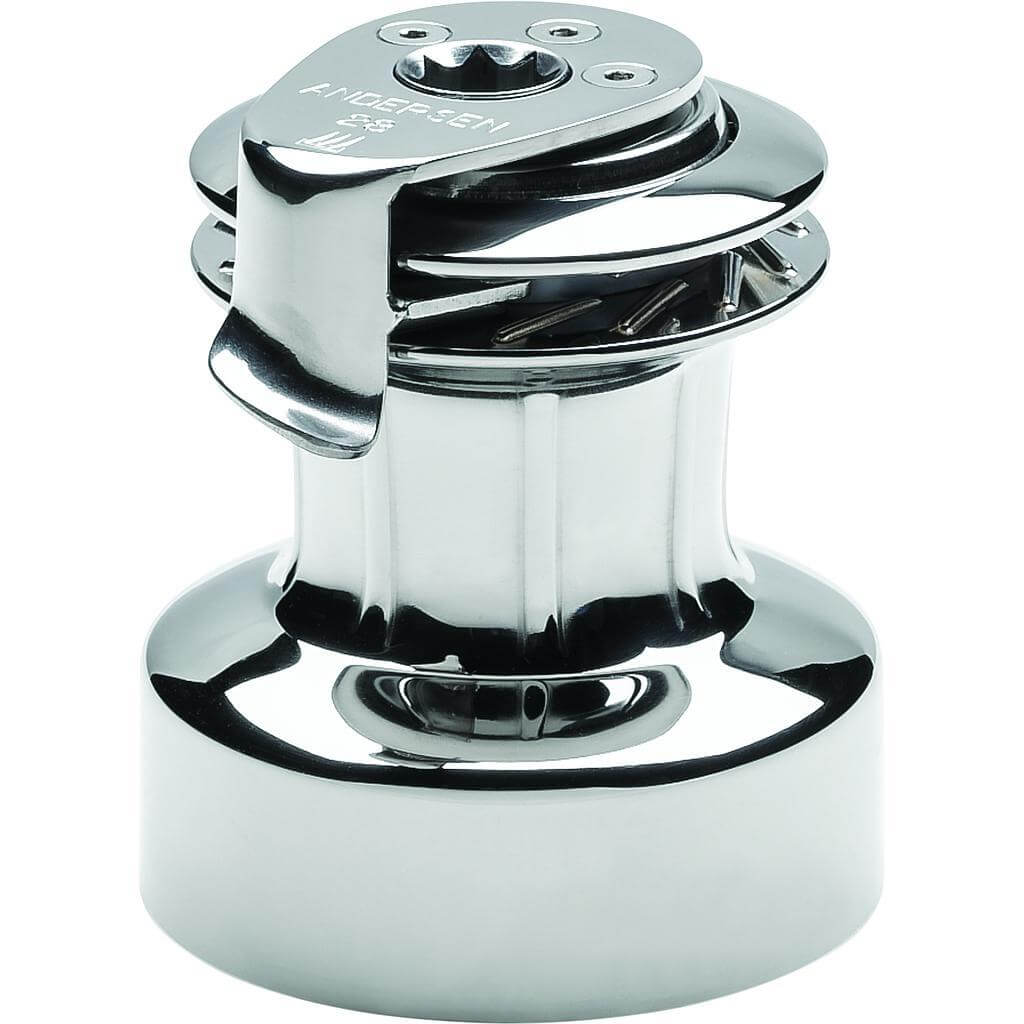

Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 28 |
| Style | Self-Tailing |
| Matériau | Acier inoxydable |
| Diamètre de l'embase | 125 |
| Ø tourelle (mm) | 70 |
| Hauteur (mm) | 147 |
| Hauteur d’entrée du cordage (mm) | 65 |
| Vitesse (manuelle) | 2 vitesses |
| A (mm) | 70 |
| B (mm) | 125 |
| C (mm) | 147 |
| D (mm) | 65 |
| Vitesse 1 (X : 1) | 1,3 |
| Vitesse 2 (X : 1) | 4 |
| Puissance 1 (X : 1) | 9,5 |
| Puissance 2 (X : 1) | 28,6 |
| Poids (g) | 3900 |
