F_Facnor 2D Drawing LX290 - SX47 Drum Foil Section_001.DWG
Facnor LX290 - SX47 2D Drum Foil Section Technical Drawing
|
|
|
|
F_Facnor 2D Drawing LX200 - SX47 Drum Foil Section_001.DWG
Facnor LX200 - SX47 2D Drum Foil Section Technical Drawing
|
|
|
F_Facnor SX & R Measurements Sections FR EN_001.pdf
Facnor SX & R Measurements Sections Diagram- French/English
|
|
|
|
F_Facnor SX & R Foil Sections Brochure EN_001.pdf
Facnor SX & R Furling Sections and Connectors Datasheet
|
|
|
|
F_Facnor LS-LX-RX Measurements Connectors FR EN_001.pdf
Facnor LS-LX-RX Connectors Measurements Diagram- French/English
|
|
|
|
F_Facnor Catalogue 2019-2020 EN_001.pdf
Facnor Products Catalogue 2019-2020
|
The SX twin groove foil sections can be fitted on the various furling systems: classic drum (LS,LX,RX), webbing drum (FD) and motorized drum (EF). Each standard furler set includes foil sections, but in the need of acquiring an additional one to make up your forestay length or to repair your current one, 2m long sections can be purchased individually.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

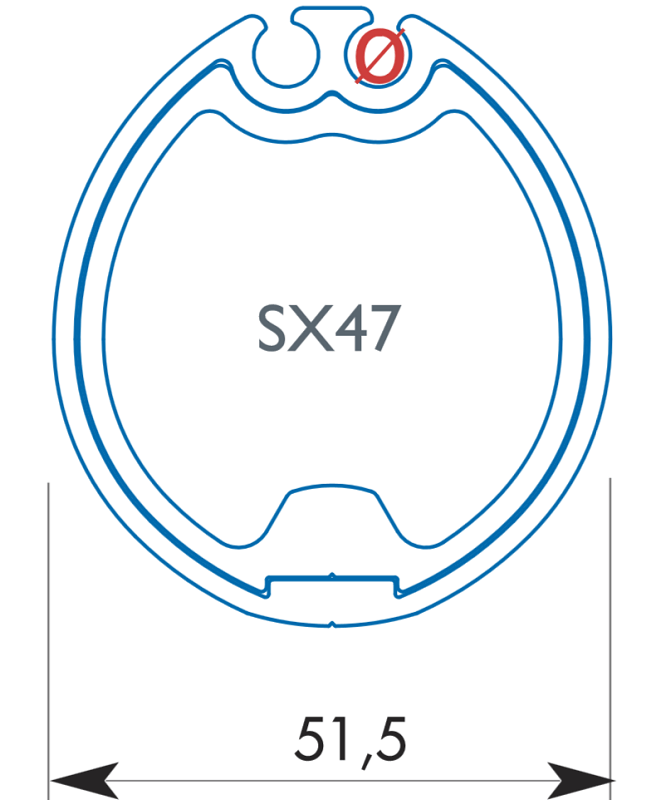

Spécifications
| Ø du profil (mm) | 51 |
| Longueur de profil (mm) | 2000 |
| Ralingue (mm) | 5 |
| Ø cable max (mm) | 14 |
| Poids de profil (g/m) | 1095 |
| Nbr de gorge (Simple/Double) | D |
