Specifications for Ropeye TWL Padeye
| Tauwerk Ø (mm) | 4 or 5 or 6 |
| Material | Karbon or Glasfaser |
| SWL (kg) | 200 or 225 or 250 |
| A (mm) | 5 or 6 or 4 |
| Gewicht (g) | 15 or 17 or 16,5 |
| B (mm) | 650 |
| C (mm) | 50 |

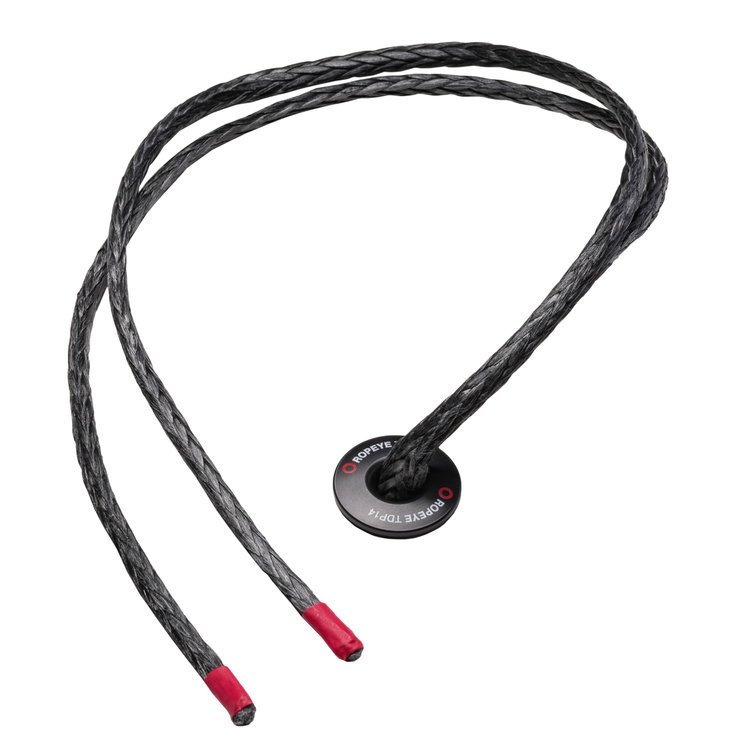

Ropeye TWL Padeye – Ultra-Lightweight & Versatile Twinline Soft Attachment
The Ropeye TWL Padeye (Twinline) is an innovative, low-profile soft attachment point designed to securely fasten fittings without the need for additional connectors. Constructed using high-strength Dyneema® and available with either a carbon or glass fibre base, the TWL Padeye offers an ultra-lightweight, durable, and load-efficient alternative to traditional metal padeyes.
Designed for through-deck installations, the TWL Padeye must be used with a Ropeye TDP deck bushing, which prevents abrasion of the Dyneema® at deck level, ensuring longevity and consistent performance under load.
Key Features:
✔ Direct Twinline Attachment – Eliminates the need for extra connectors, providing a clean, lightweight, and efficient solution.
✔ Ultra-Lightweight Dyneema® Construction – Offers exceptional strength-to-weight ratio with minimal impact on deck load.
✔ Durable Carbon or Glass Fibre Base – Available in both carbon and glass fibre, allowing sailors to choose the best option for performance and durability.
✔ Designed for Through-Deck Applications – Must be used with a Ropeye TDP deck bushing to protect the Dyneema® from wear and abrasion.
✔ Customisable Options – Available in 4mm, 5mm, and 6mm Dyneema® sizes, catering to different load requirements.
✔ Low-Friction & High-Load Capability – Engineered for high-performance sailing applications, providing a strong and secure attachment point.
Applications:
- Ideal for attaching blocks, hardware, and soft rigging systems without additional connectors.
- Used in high-performance racing yachts and lightweight cruising setups where weight savings are crucial.
- Provides a minimalist, strong, and flexible solution for deck, mast, and bulkhead installations.
Installation:
- Drill the installation hole to the correct size.
- Clean the area with acetone to ensure a secure bond.
- Insert the Ropeye TDP deck bushing to prevent Dyneema® abrasion and protect the deck.
- Apply adhesive and press the Ropeye TWL Padeye into place.
- Wait 24 hours before applying any load to allow for full curing.
Warranty: The Ropeye TWL Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Spezifikationen
| Tauwerk Ø (mm) | 4 oder 5 oder 6 |
| Material | Karbon oder Glasfaser |
| SWL (kg) | 200 oder 225 oder 250 |
| A (mm) | 5 oder 6 oder 4 |
| Gewicht (g) | 15 oder 17 oder 16,5 |
| B (mm) | 650 |
| C (mm) | 50 |
