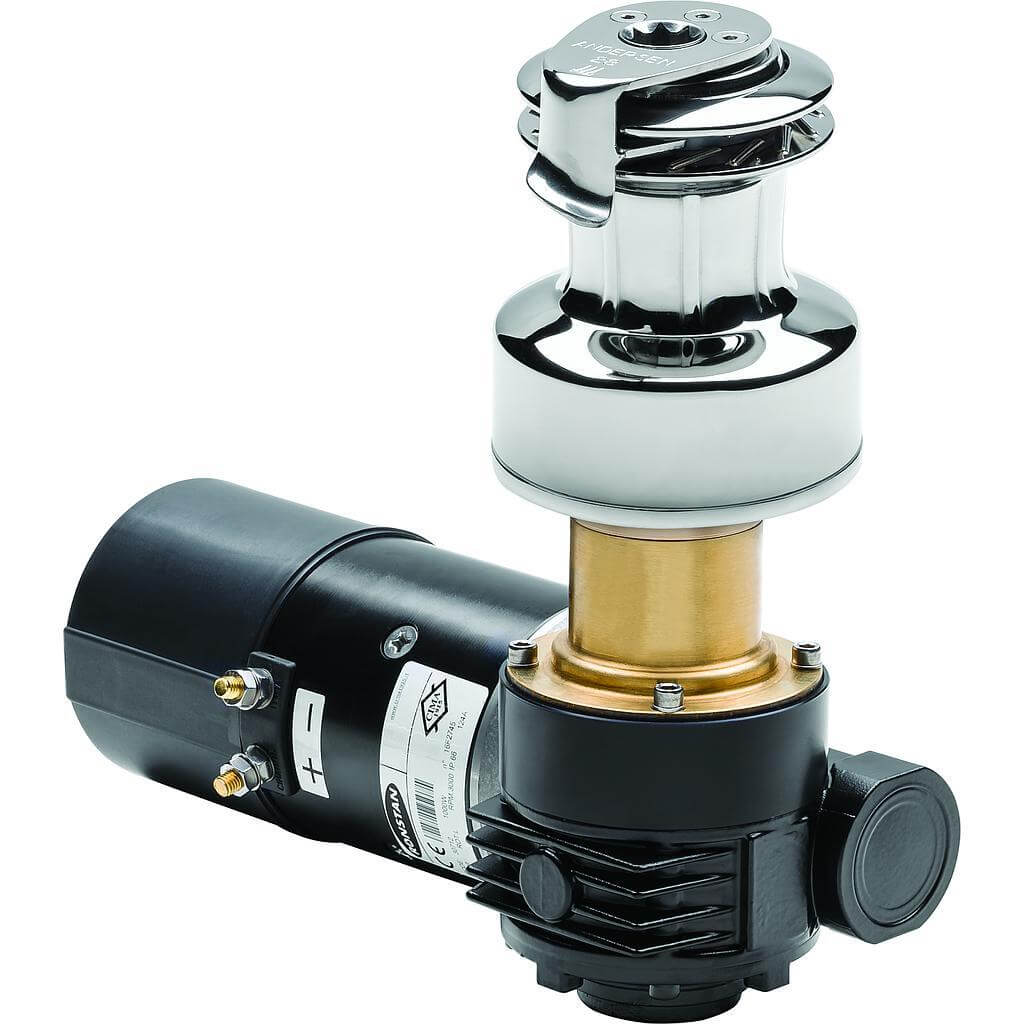

Andersen 34 1-Speed Electric (Horizontal) 12V Stainless Steel E1 Winch (2-Speed Manual)
Specifications for Andersen 34 1-Speed Electric (Horizontal) 12V Stainless Steel E1 Winch (2-Speed Manual)
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Skirt Details | Integrated |
| Size | 34 |
| Style | Horizontal |
| Power (W) | 1000 |
| Deck thickness Max (mm) | 49 |
| Voltage (V) | 12 |
| Material | Stainless Steel |
| Line recovery per rotation - 1st gear (mm) | 169 |
| Line recovery per rotation - 2nd gear (mm) | 47 |
| Base Ø (mm) | 125 |
| Drum Ø (mm) | 70 |
| Height (mm) | 161 |
| Line entry height (mm) | 75 |
| Motor Depth (mm) | 183 |
| Motor Length (mm) | 300 |
| Gears (Manual) | 2-Speed |
| B (mm) | 125 |
| D (mm) | 70 |
| H (mm) | 161 |
| J (mm) | 183 |
| K (mm) | 49 |
| L (mm) | 75 |
| N (mm) | 300 |
| S (mm) | 75 |
| Speed (Motor) | 1-Speed |
| Gear ratio 1 (X : 1) | 1.3 |
| Gear ratio 2 (X : 1) | 4.7 |
| Power ratio 1 (X : 1) | 9.5 |
| Power ratio 2 (X : 1) | 33.8 |
| Pulling load - Max (kg) | 700 |
| Line speed - 1st gear (m/min) | 24.8 |
| Weight (g) | 18000 |
|
Andersen - Product manual 34ST v2.0 _ 34ST FS v2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 _ Compact Motor Below Deck Self Tailing Winches, Size 28 _ 34 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Self-Tailing Electric Winches - E1 Single Speed Motor, 1 electric speed + 2 manual speeds
Efficient, high quality motor
At the heart of the E1 winch is a high quality European engineered and manufactured series wound motor. Carefully matched with the optimal gearbox they deliver high speed at low load for fast sheeting in, and low speed at high load for safe, fine tuning when trimming. They are available in 12 Volt and 24 Volt models providing smooth and quiet operation across a wide working load range.
Illuminated “intelligent” Push Button
E1 winches are supplied with push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs.
Manual operation
2-speed manual operation is always available as a backup; to winch beyond the pre-set maximum pull load (but below the winch Max Working Load) or just for the experience.
