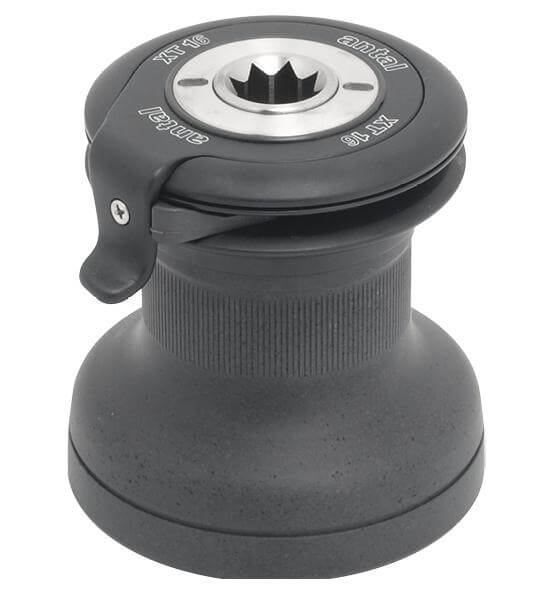

Specifications for Antal 16 1-Speed Self-Tailing Aluminium Winch
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 16 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 115 |
| Base Ø (mm) | 112 |
| Drum Ø (mm) | 71 |
| Height (mm) | 119 |
| Gears (Manual) | 1-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 14 |
| Weight (g) | 2400 |
One Reduced Speed Winch
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 16 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 115 |
| Base Ø (mm) | 112 |
| Drum Ø (mm) | 71 |
| Height (mm) | 119 |
| Gears (Manual) | 1-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 2 |
| Power ratio 1 (X : 1) | 14 |
| Weight (g) | 2400 |
