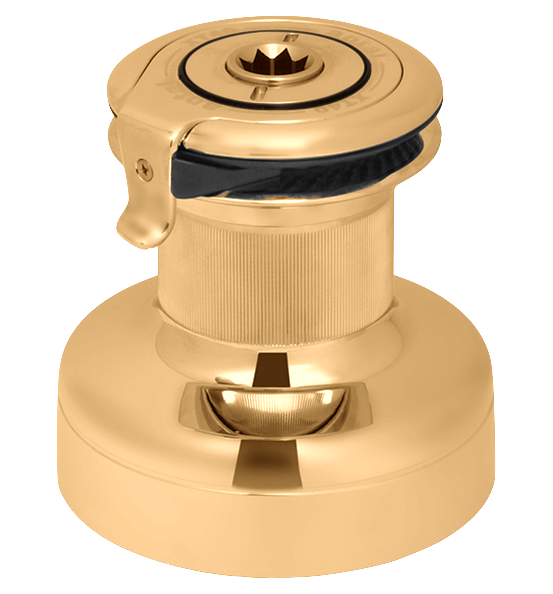

Specifications for Antal 30 2-Speed Self-Tailing Bronze Winch
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 30 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Base Ø (mm) | 128 |
| Drum Ø (mm) | 73 |
| Height (mm) | 135 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 4.1 |
| Power ratio 1 (X : 1) | 7 |
| Power ratio 2 (X : 1) | 28 |
| Weight (g) | 3700 |
Two Speed Winch: Direct, Reduced
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way. Both available in chrome (CH) or hard black alloy (AL).
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 30 |
| Style | Self-Tailing |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Base Ø (mm) | 128 |
| Drum Ø (mm) | 73 |
| Height (mm) | 135 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 4.1 |
| Power ratio 1 (X : 1) | 7 |
| Power ratio 2 (X : 1) | 28 |
| Weight (g) | 3700 |
