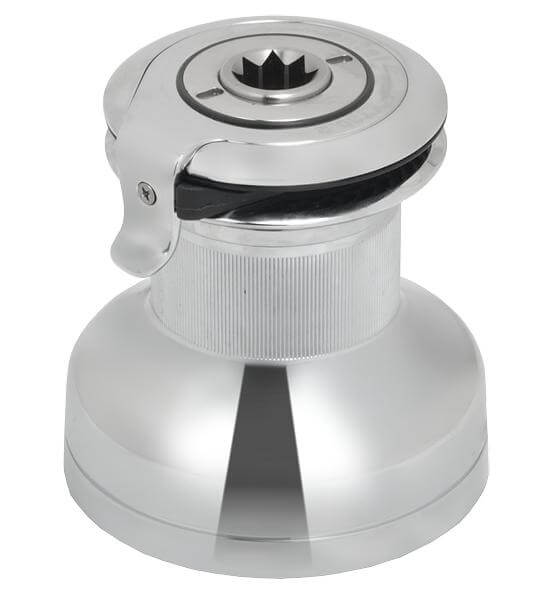

Specifications for Antal 30 2-Speed Self-Tailing Chromed Bronze Winch
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 30 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Base Ø (mm) | 128 |
| Drum Ø (mm) | 73 |
| Height (mm) | 135 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 4.1 |
| Power ratio 1 (X : 1) | 7 |
| Power ratio 2 (X : 1) | 28 |
| Weight (g) | 3700 |
Two Speed Winch: Direct, Reduced
The two smallest models (XT16.2 and XT30.2) have one reduced speed, giving a slow but powerful gear and addition of a direct speed, giving a faster recovery gear, which, combined with reduced weight and an automatic self-tailing for very thin lines, makes these models the best choice for racing.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 30 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Base Ø (mm) | 128 |
| Drum Ø (mm) | 73 |
| Height (mm) | 135 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 4.1 |
| Power ratio 1 (X : 1) | 7 |
| Power ratio 2 (X : 1) | 28 |
| Weight (g) | 3700 |
