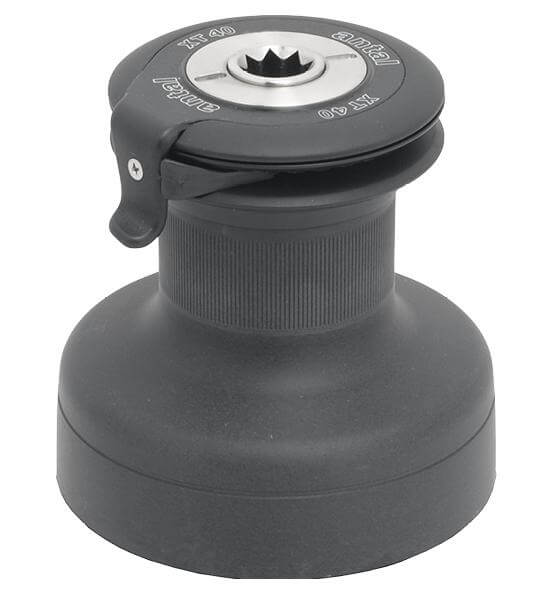

Specifications for Antal 40 2-Speed Self-Tailing Aluminium Winch
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 40 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 125 |
| Line recovery per rotation - 2nd gear (mm) | 40 |
| Base Ø (mm) | 153 |
| Drum Ø (mm) | 80 |
| Height (mm) | 157 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 2 |
| Gear ratio 2 (X : 1) | 6.4 |
| Power ratio 1 (X : 1) | 12.8 |
| Power ratio 2 (X : 1) | 40 |
| Weight (g) | 4400 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 40 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 125 |
| Line recovery per rotation - 2nd gear (mm) | 40 |
| Base Ø (mm) | 153 |
| Drum Ø (mm) | 80 |
| Height (mm) | 157 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 2 |
| Gear ratio 2 (X : 1) | 6.4 |
| Power ratio 1 (X : 1) | 12.8 |
| Power ratio 2 (X : 1) | 40 |
| Weight (g) | 4400 |
