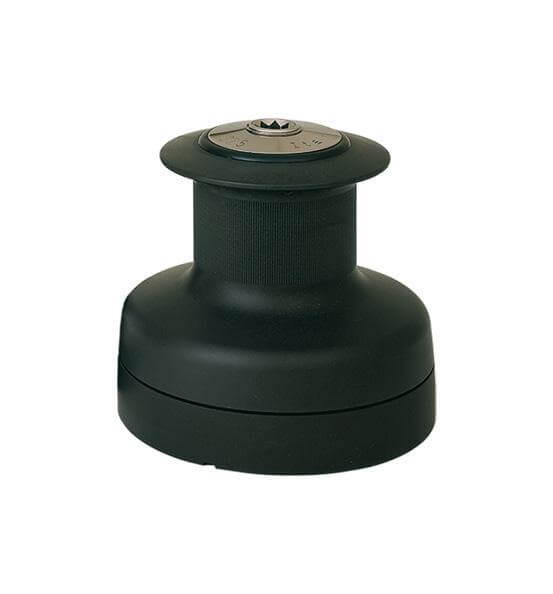

Specifications for Antal 60 2-Speed Plain-Top Aluminium Winch
| Size | 60 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 105 |
| Height (mm) | 211 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.9 |
| Gear ratio 2 (X : 1) | 12.9 |
| Power ratio 1 (X : 1) | 18.7 |
| Power ratio 2 (X : 1) | 61.2 |
| Weight (g) | 9500 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected. Marine bronze is used for gears, AISI 316 stainless steel for central rod and roller bearings, CNC aluminium base, hard black anodized aluminium (AL) or chrome-plated (CH) drum.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Specifications
| Size | 60 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 105 |
| Height (mm) | 211 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.9 |
| Gear ratio 2 (X : 1) | 12.9 |
| Power ratio 1 (X : 1) | 18.7 |
| Power ratio 2 (X : 1) | 61.2 |
| Weight (g) | 9500 |
