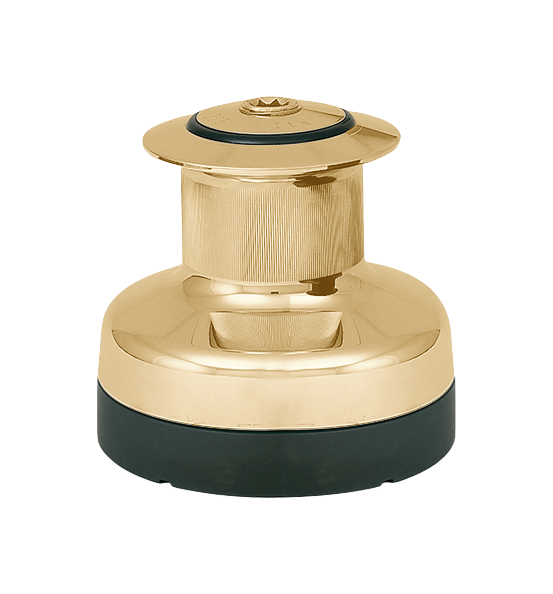

Specifications for Antal 60 2-Speed Plain-Top Bronze Winch
| Size | 60 |
| Style | Plain-Top |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 105 |
| Height (mm) | 211 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.9 |
| Gear ratio 2 (X : 1) | 12.9 |
| Power ratio 1 (X : 1) | 18.7 |
| Power ratio 2 (X : 1) | 61.2 |
| Weight (g) | 12600 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected. Marine bronze is used for gears, AISI 316 stainless steel for central rod and roller bearings, CNC aluminium base, hard black anodized aluminium (AL) or chrome-plated (CH) drum.
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Specifications
| Size | 60 |
| Style | Plain-Top |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 85 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 105 |
| Height (mm) | 211 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 3.9 |
| Gear ratio 2 (X : 1) | 12.9 |
| Power ratio 1 (X : 1) | 18.7 |
| Power ratio 2 (X : 1) | 61.2 |
| Weight (g) | 12600 |
