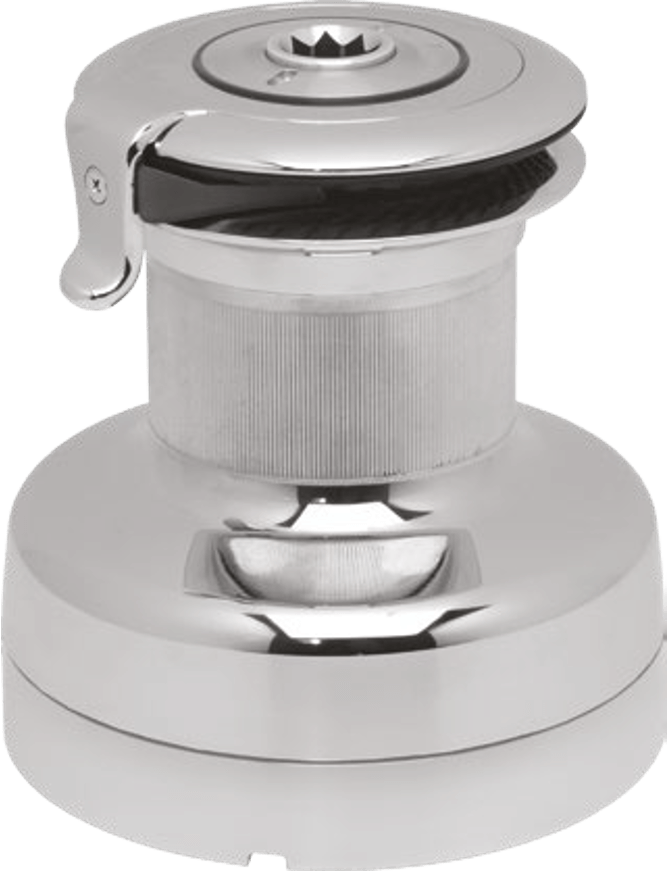

Three Reduced Speed Classic Series Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Classic series winches (CHC) are supplied not only with a chromed drum, ST disks and ST arm, as the chrome series models (CH), but also with a chromed lower skirt, thus being completely chromed. The chrome-plating is carried out with great care to guarantee maximum durability. First the unit are highly polished, then thickly nickel-plated and finally finisched in chrome.
Specifications
Recommended line - Max Ø (mm) | 16 |
Recommended line - Min Ø (mm) | 8 |
Size | 62 |
Style | Self-Tailing |
Material | Chromed Bronze |
Line recovery per rotation - 1st gear (mm) | 241 |
Line recovery per rotation - 2nd gear (mm) | 89 |
Line recovery per rotation - 3rd gear (mm) | 26 |
Base Ø (mm) | 224 |
Drum Ø (mm) | 120 |
Height (mm) | 245 |
Gears (Manual) | 3-Speed |
Warranty (yrs) | 3 |
Gear ratio 1 (X : 1) | 1.6 |
Gear ratio 2 (X : 1) | 4.3 |
Gear ratio 3 (X : 1) | 14.9 |
Power ratio 1 (X : 1) | 6.6 |
Power ratio 2 (X : 1) | 17.8 |
Power ratio 3 (X : 1) | 62.1 |
Weight (g) | 19360 |
