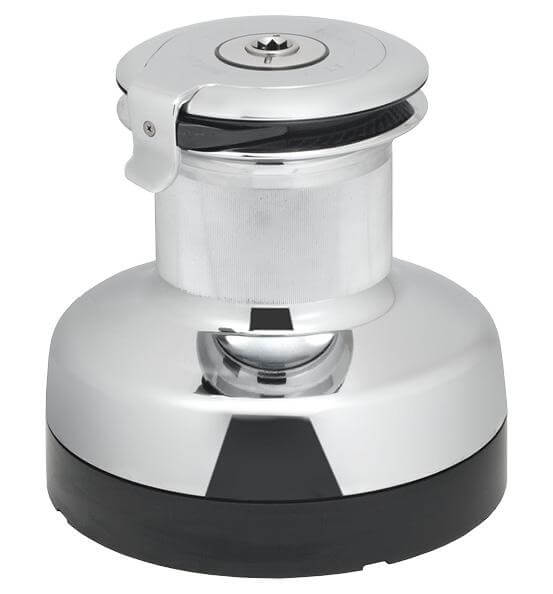

Specifications for Antal 66 2-Speed Self-Tailing Chromed Bronze Winch
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Size | 66 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 89 |
| Line recovery per rotation - 2nd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 256 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 5.2 |
| Gear ratio 2 (X : 1) | 18.9 |
| Power ratio 1 (X : 1) | 18 |
| Power ratio 2 (X : 1) | 65.6 |
| Weight (g) | 24600 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected. Large drum winches for 15-18 m boats. All the gears are fitted with roller bearings and the drum works on a very wide diameter roller-ball bearings.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Size | 66 |
| Style | Self-Tailing |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 89 |
| Line recovery per rotation - 2nd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 256 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 5.2 |
| Gear ratio 2 (X : 1) | 18.9 |
| Power ratio 1 (X : 1) | 18 |
| Power ratio 2 (X : 1) | 65.6 |
| Weight (g) | 24600 |
