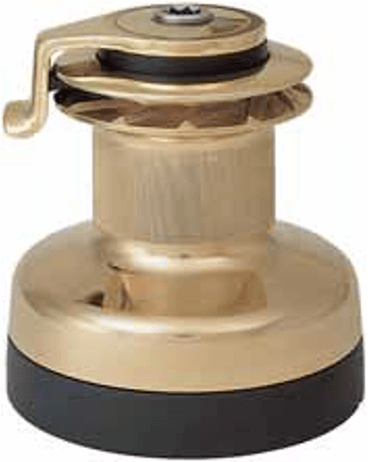

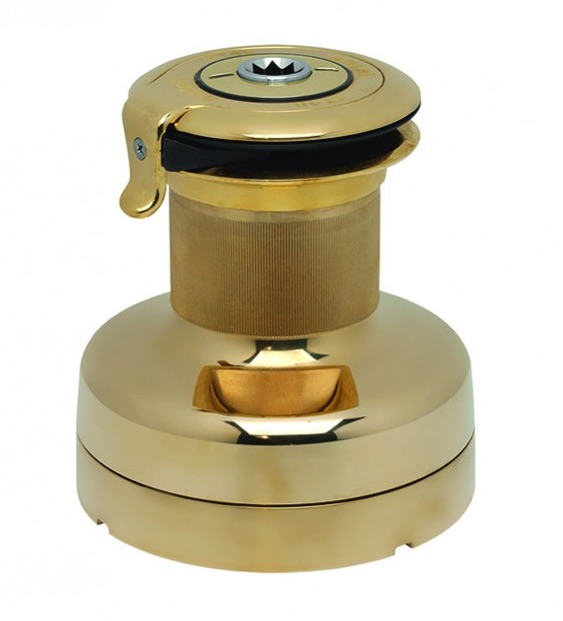

Three Reduced Speed Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
Recommended line - Max Ø (mm) | 18 |
Recommended line - Min Ø (mm) | 10 |
Size | 66 |
Style | Self-Tailing |
Material | Bronze |
Line recovery per rotation - 1st gear (mm) | 151 |
Line recovery per rotation - 2nd gear (mm) | 77 |
Line recovery per rotation - 3rd gear (mm) | 24 |
Base Ø (mm) | 248 |
Drum Ø (mm) | 144 |
Height (mm) | 293 |
Gears (Manual) | 3-Speed |
Warranty (yrs) | 3 |
Gear ratio 1 (X : 1) | 3.1 |
Gear ratio 2 (X : 1) | 6 |
Gear ratio 3 (X : 1) | 18.8 |
Power ratio 1 (X : 1) | 10.7 |
Power ratio 2 (X : 1) | 20.8 |
Power ratio 3 (X : 1) | 65.3 |
Weight (g) | 28400 |
