Specifications for Antal 8 1-Speed Plain-Top Chromed Bronze Winch
| Size | 8 |
| Style | Plain-Top |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 220 |
| Base Ø (mm) | 110 |
| Drum Ø (mm) | 70 |
| Height (mm) | 105 |
| Gears (Manual) | 1-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Power ratio 1 (X : 1) | 7.3 |
| Weight (g) | 2100 |
One Direct Speed Winch

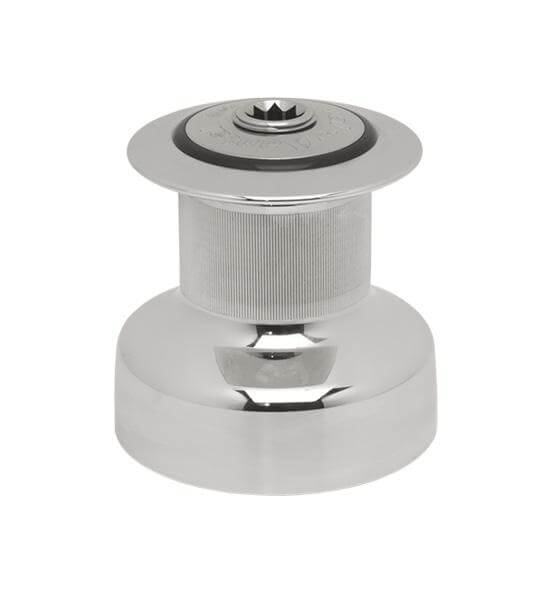

Turn the handle clockwise to engage the single direct gear; the handle turns freely counterclockwise. Small and fast models for boats up to 6-7 m. Model W8 has an AISI 316 stainless steel central rod, a bronze base and a black anodized aluminium (AL) or chrome-plated (CH) drum mounted on roller bearings.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Specifications
| Size | 8 |
| Style | Plain-Top |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 220 |
| Base Ø (mm) | 110 |
| Drum Ø (mm) | 70 |
| Height (mm) | 105 |
| Gears (Manual) | 1-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Power ratio 1 (X : 1) | 7.3 |
| Weight (g) | 2100 |
