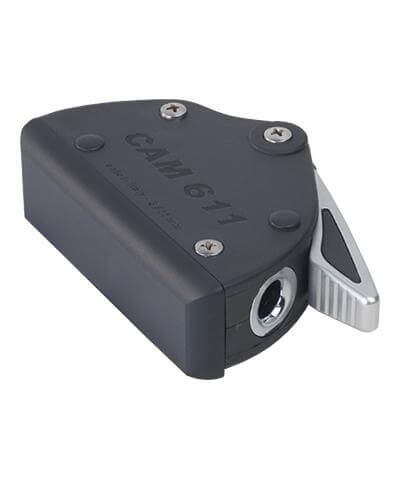

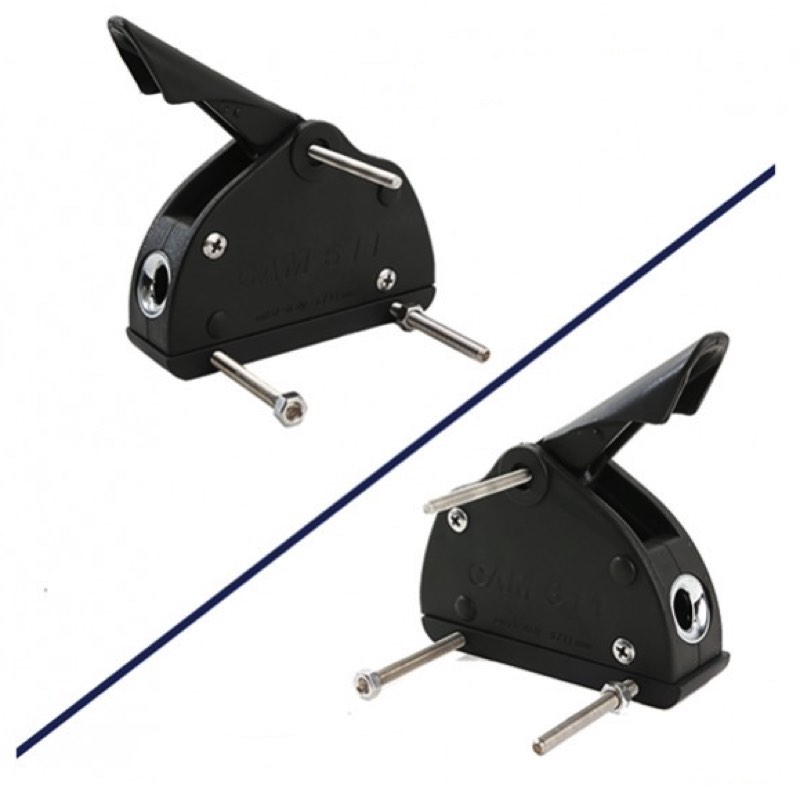

Specifications for Antal Cam 611 Rope Clutch - Horizontal, Silver
| Width (mm) | 33 |
| Fixing hole Ø (mm) | 6 |
| Length (mm) | 118.5 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 73 |
| SWL (kg) | 500 |
| A (mm) | 43.5 |
| B (mm) | 36 |
| C (mm) | 67.5 |
| Weight (g) | 510 |
| Type | Horizontal |
The Antal Cam 611 Rope Clutch is designed with a high-quality flat cam mechanism, offering reliable performance for a wide range of rope diameters. Built with durable chromed brass components, these compact flat cam clutches ensure smooth operation for lines between 6mm and 10mm.
Key Features of the Antal Cam 611 Flat Cam Clutch:
- Dual-Sided Pressure: The flat cam exerts pressure on the rope from above, ensuring automatic grip when the line is pulled. The clutch base adapts to various line diameters, providing versatility.
- Wide Line Range: This flat cam clutch accommodates multiple line sizes, making it ideal for switching lines without changing clutches. Compatible with 6-10mm lines.
- Line Retrieval with Closed Lever: Effortlessly retrieve your line while the lever is closed. The line locks into the new position automatically without slipping.
- Emergency Release Under Load: Easily release lines under load, even without a winch. The Antal mechanism is engineered for reliable performance, even in tough conditions.
Specifications
| Width (mm) | 33 |
| Fixing hole Ø (mm) | 6 |
| Length (mm) | 118.5 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 73 |
| SWL (kg) | 500 |
| A (mm) | 43.5 |
| B (mm) | 36 |
| C (mm) | 67.5 |
| Weight (g) | 510 |
| Type | Horizontal |
