Specifications for Antal LD700 Powered Line Driver
| Voltage Variant (V) | 12 or 24 or 48 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Recommended line - Max Ø (mm) | 12 |
| SWL (kg) | 800 |
| Line speed - 1st gear (m/min) | 6 |
| Weight (g) | 15000 |

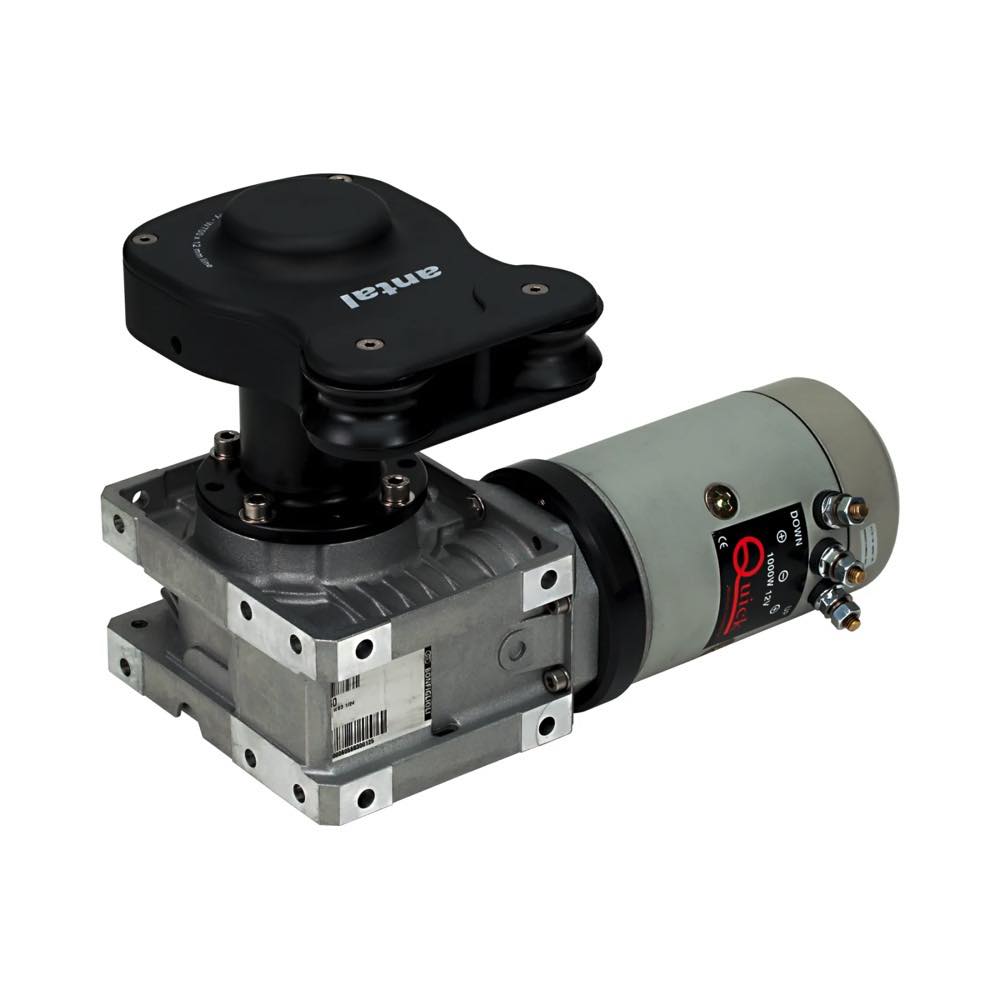

Antal LD700 Powered Line Driver – Compact & Efficient Traveller Control
The Antal LD700 Powered Line Driver is a high-performance, motorized sail control system, designed to provide precise and effortless traveller control on performance yachts and cruisers. Equipped with a 700W motor, the LD700 is available in 12V, 24V, and 48V versions, ensuring compatibility with a wide range of onboard power systems. This system enables smooth mainsail or genoa car adjustments, significantly reducing manual effort while enhancing control, efficiency, and precision. The self-tailing sheave ensures a secure grip on the line, operating in both directions for smooth and reliable performance under load.
Designed for below-deck installation, the LD700 Line Driver keeps the deck clean and clutter-free, making it an excellent choice for smaller yachts, racing sailboats, and high-performance cruisers seeking advanced sail automation.
Key Features & Specifications:
- Model: LD700
- Power Supply Options: Available in 12V, 24V, and 48V versions
- Motor Power: 700W, delivering efficient performance under moderate to high loads
- Line Diameter: 10–12 mm, compatible with various traveller configurations
- Main Car Size Compatibility: 47 × 230 mm, ensuring seamless integration
- Mounting Screws: 4 × Ø8 mm for secure installation
- Working Load Capacity: 800 kg
- Line Speed: 0.08 m/sec (varies with load conditions)
- Weight: 15 kg
System Requirements – Additional Components Needed (Not Included in Price)
To ensure a fully operational system, the following additional components are required and sold separately:
✔ Circuit Breaker – Protects against electrical overload and ensures system safety
✔ Control Box – Centralized unit managing power and functionality
✔ Switches – Allows for easy traveller movement control
✔ End Stop Control Unit – Prevents overloading and enhances safety
✔ Proximity Switches – Automatically stops the traveller at set track positions
Why Choose the Antal LD700 Powered Line Driver?
✔ Compact & Lightweight Design – Ideal for smaller yachts and performance sailboats
✔ Automated Traveller Adjustments – Reduces manual effort for fast and precise sail control
✔ Below-Deck Installation – Maintains a clean and efficient deck layout
✔ Reliable High-Load Handling – Supports up to 800 kg working load
✔ Self-Tailing Sheave for Secure Line Grip – Ensures smooth, reliable operation
✔ Versatile Power Options – Available in 12V, 24V, and 48V models
Ideal for:
- Mainsail Car Control – Enables precise traveller positioning for optimal sail trim
- Genoa Car Control – Allows smooth, controlled genoa adjustments
- Performance Yachts & Racing Sailboats – Enhances efficiency, control, and safety
The Antal LD700 Powered Line Driver is the perfect solution for smaller yachts looking to upgrade their sail handling with a compact, high-performance system. Experience precise and effortless traveller control with Antal’s advanced technology.
Specifications
| Voltage Variant (V) | 12 or 24 or 48 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Recommended line - Max Ø (mm) | 12 |
| SWL (kg) | 800 |
| Line speed - 1st gear (m/min) | 6 |
| Weight (g) | 15000 |
