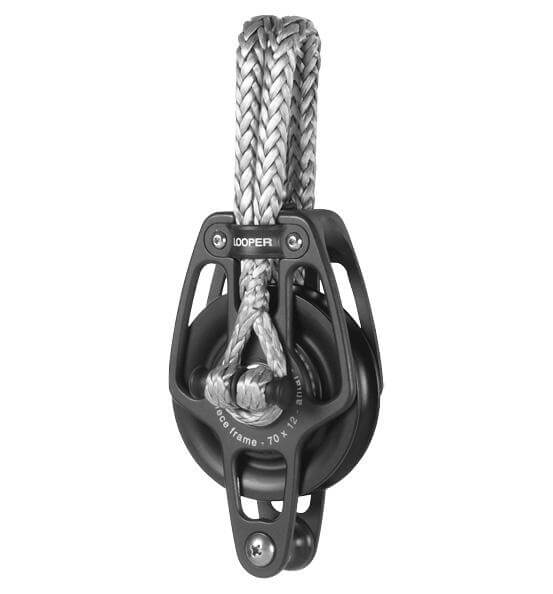

Antal's LOOPER is an ultralight block with one-piece-aluminium frame block and resin sheave on composite fibre bushing and double side ball bearings; provided with a dyneema Snap-Loop for fast, easy and safe connections.
The one-piece aluminium extruded body is the strongest and lightest solution, no assembling pin rivets or screws and nuts. CNC machined - polished - hard black anodized and Teflon coated.
The resin (aluminium on larger mod) sheave runs on the main Composite Fibre bearing and on a ground stainless steel hub: low friction, high- loads and no lubricant required. The self-captive side ball bearing reduces the friction and makes disassembling, cleaning and maintenance very easy. Sheaves are supplied with the stainless steel hub.
The dyneema snap loops are obtained with a spliced Dyneema line without cover and an aluminium dog-bone.
Specifications
Bearing type | Ball bearing |
Recommended line - Max Ø (mm) | 12 |
Sheave Ø (mm) | 70 |
Sideplate material | Aluminum |
Ratchet | No |
Sheave material | Plastic |
SWL (kg) | 1600 |
Weight (g) | 172 |
