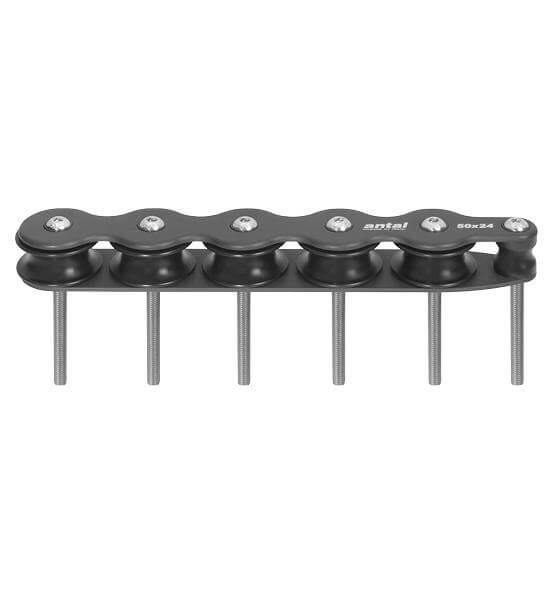

Antal organisers are available with 2 to 6 sheaves in diameters of 40, 50, 60 or 70mm.
The 40 and 50mm sheaves are manufactured in high-strength resin with a double side ball bearing. The 60 and 70mm sheaves are manufactured in aluminium, hard black anodized, with a main composite fibre bearing and two side ball bearings.
Mounting screws, nuts and washers included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 50 |
| Recommended line - Max Ø (mm) | 16 |
| Total height (mm) | 35 |
| Fixing hole spacing (mm) | 52 |
| Total length (mm) | 289 |
| Sheave Ø (mm) | 50 |
| Mounting fasteners | M8 (supplied) |
| Sideplate material | Aluminum |
| Sheave material | Plastic |
| SWL (kg) | 1200 |
| Weight (g) | 620 |
