Specifications for Antal Removable Pad Eye - 20mm
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 56 |
| SWL (kg) | 9000 |
| B (mm) | 30 |
| C (mm) | 42 |
| D (mm) | 100 |
| d (mm) | 20 |
| E (mm) | 92 |
| F (mm) | 120 |
| Weight (g) | 3600 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

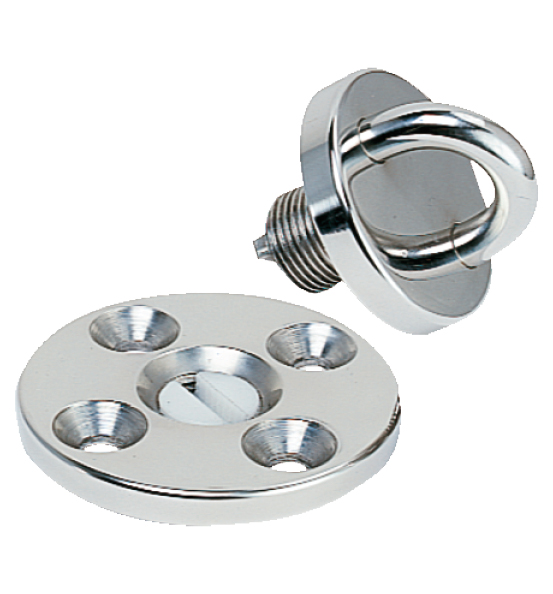

Antal removable pad eyes made of AISI 316 Stainless Steel.
This solution allows an easy removal of the pad eye from the deck. They can be fitted with a block and a stand-up spring or used as a fixed point on the deck for many applications.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 56 |
| SWL (kg) | 9000 |
| B (mm) | 30 |
| C (mm) | 42 |
| D (mm) | 100 |
| d (mm) | 20 |
| E (mm) | 92 |
| F (mm) | 120 |
| Weight (g) | 3600 |
