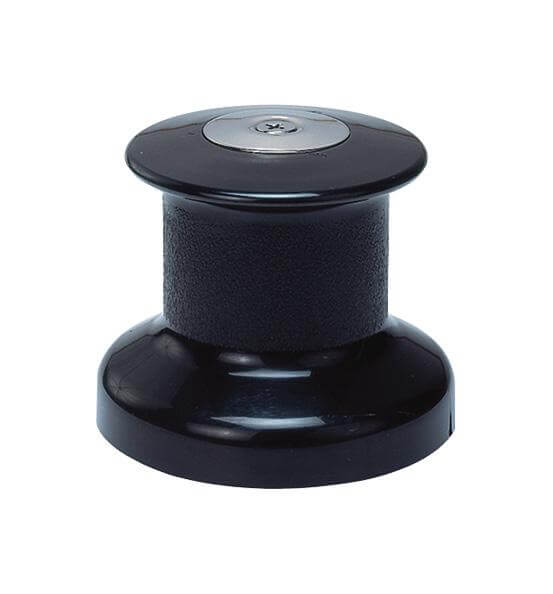

Specifications for Antal Size 6 Snubbing Resin Winch
| Size | 6 |
| Style | Snubbing |
| Material | Resin |
| Line recovery per rotation - 1st gear (mm) | 188 |
| Base Ø (mm) | 94 |
| Drum Ø (mm) | 60 |
| Height (mm) | 87 |
| Gears (Manual) | 1-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Power ratio 1 (X : 1) | 6.7 |
| Weight (g) | 430 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
One Direct Speed Winch
Turn the handle clockwise to engage the single direct gear; the handle turns freely counterclockwise. Small and fast models for boats up to 6-7 m. Model W6 is the smallest and lightest in the range, with a glass-fibre resin base and drum and an aluminium central rod.
These are non self-tailing winches. Powers range from 5 to 60.
