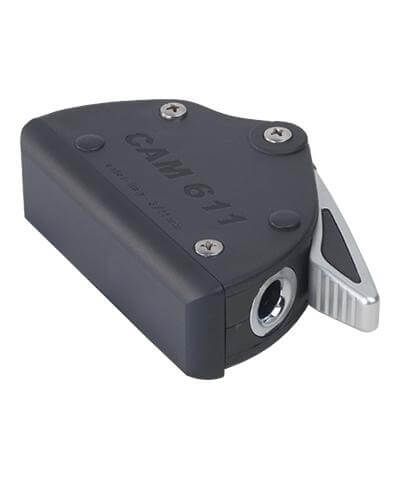

Specifications for Antal V-Cam 611 Rope Clutch - Horizontal, Silver, Left, 6mm
| Width (mm) | 33 |
| Fixing hole Ø (mm) | 6 |
| Length (mm) | 118.5 |
| Recommended line - Max Ø (mm) | 6 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 73 |
| SWL (kg) | 400 |
| A (mm) | 43.5 |
| B (mm) | 36 |
| C (mm) | 67.5 |
| Weight (g) | 510 |
| Type | Horizontal |
The Antal V-Cam 611 Rope Clutch - Horizontal, Silver, Left, 6mm is a single line gripping mechanism designed for sailboats. It grips and holds a single 6mm line using a V-shaped cam, minimising wear. This horizontal mounted clutch is ideal for left-handed operation or specific deck layouts. Made from durable materials, it allows for easy, single-handed adjustments.
The Antal V-Cam 611 Rope Clutch features the patented V-Grip system, designed to enhance rope locking with minimal wear on your lines. Unlike traditional flat cam clutches, the V-shaped cam applies pressure on three sides of the line, providing superior holding strength while protecting the line cover from damage.
Key Features of the Antal V-Cam 611 Rope Clutch:
- Triple-Sided Pressure: The innovative V-Grip system exerts pressure on three sides of the line, ensuring enhanced friction and holding strength without damaging the rope.
- Even Load Distribution: The combination of the curved base and V-shaped cam distributes the load evenly, preventing stress points and reducing the risk of line damage.
- Line Retrieval with Closed Lever: Easily retrieve your line while the lever remains closed. The line automatically locks in the new position, eliminating slippage.
- Emergency Release Under Load: The Antal V-Cam clutch allows for easy line release, even under load, without the need for a winch, ensuring safe operation in challenging conditions.
- Versatile Range: The complete V-Cam/V-Grip range is available in seven models for lines from 6mm to 22mm, with configurations in single, double, triple, and quadruple versions. The V-Cam 611 and V-Cam 814 models also offer a Silver version with an ergonomic aluminum lever for added comfort.
The Antal V-Cam 611 is the perfect choice for sailors looking for a high-performance, reliable rope clutch, for 6mm – 8mm lines, with superior holding power, safety, and versatility.
Specifications
| Width (mm) | 33 |
| Fixing hole Ø (mm) | 6 |
| Length (mm) | 118.5 |
| Recommended line - Max Ø (mm) | 6 |
| Recommended line - Min Ø (mm) | 6 |
| Height (mm) | 73 |
| SWL (kg) | 400 |
| A (mm) | 43.5 |
| B (mm) | 36 |
| C (mm) | 67.5 |
| Weight (g) | 510 |
| Type | Horizontal |
