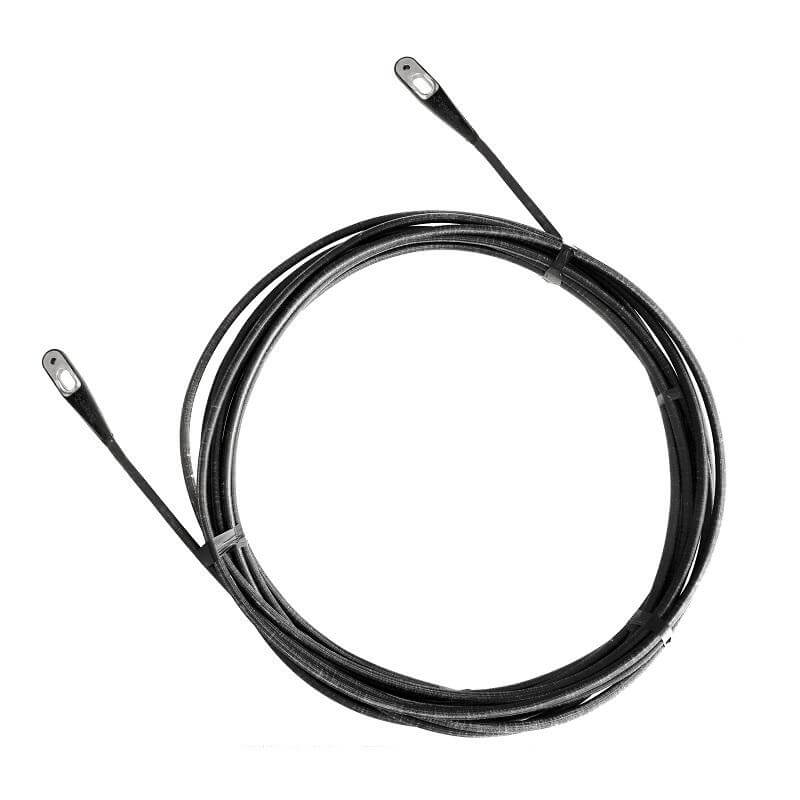

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The K49 core provides an excellent all-round, cost effective cable for cruising code zeros and asymmetrics and also for structural furling forestays. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.
Specifications
| Core material | K49 |
| Cable Ø (mm) | 16.8 |
| Fitting pin Ø (mm) | Max PIN 15 |
| Cable length (mm) | 20500 |
| Fitting width (mm) | 15.5 |
| Dash equivalent | 17 |
| EA (MN) | 10.9 |
| Fitting reference | AT2 |
| Cable weight (g) | 6000 |
| SWL (kg) | 3800 |
| NBL (kg) | 15000 |
