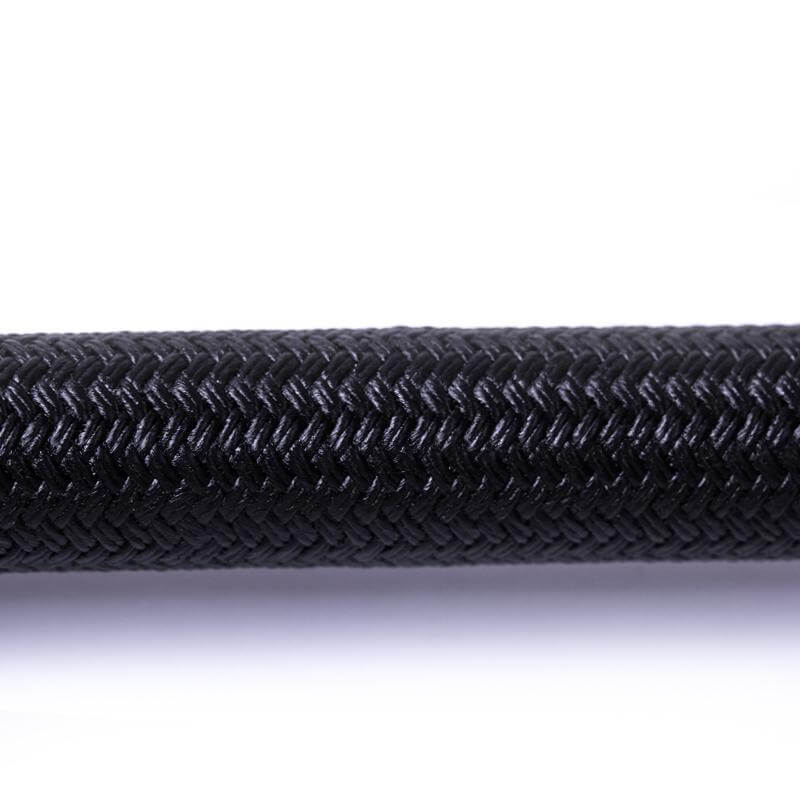

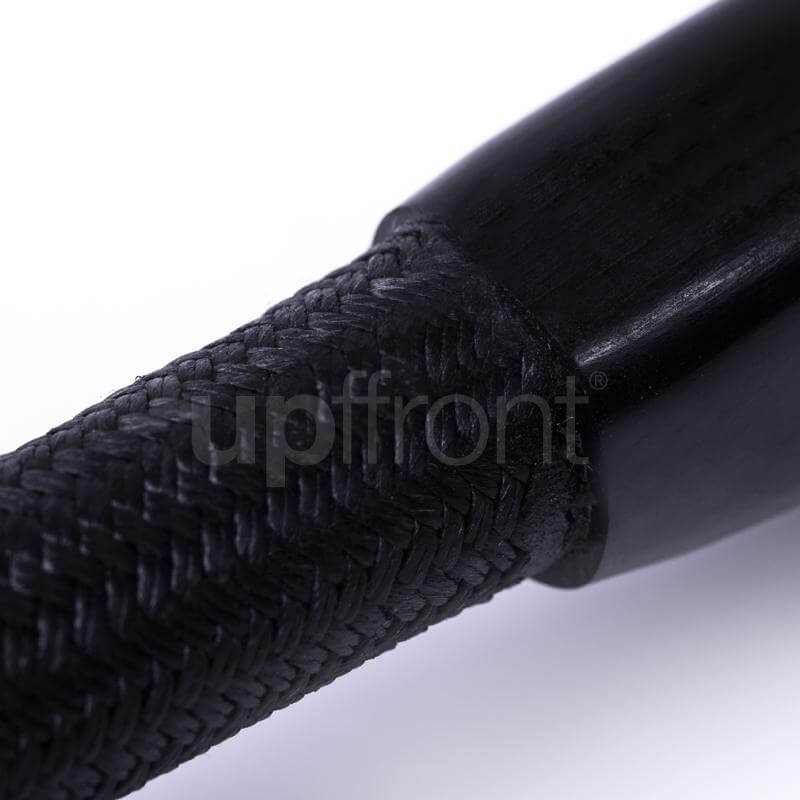

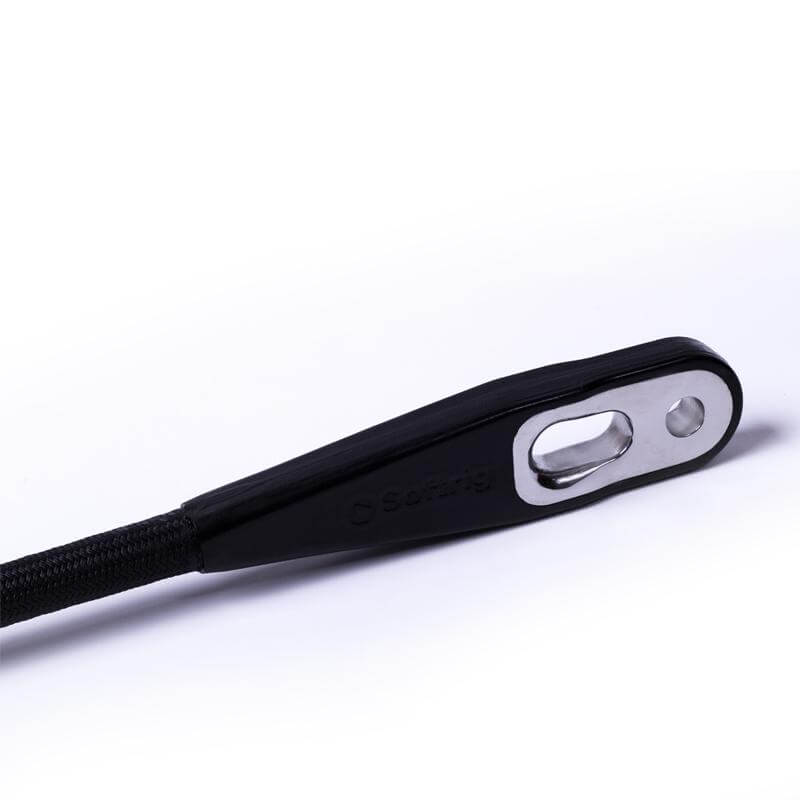

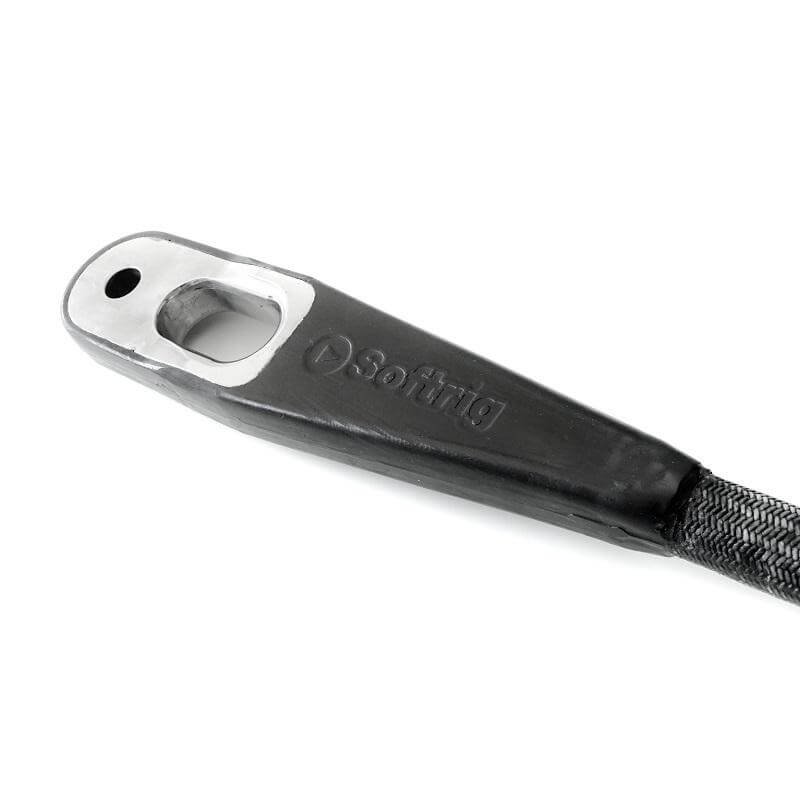

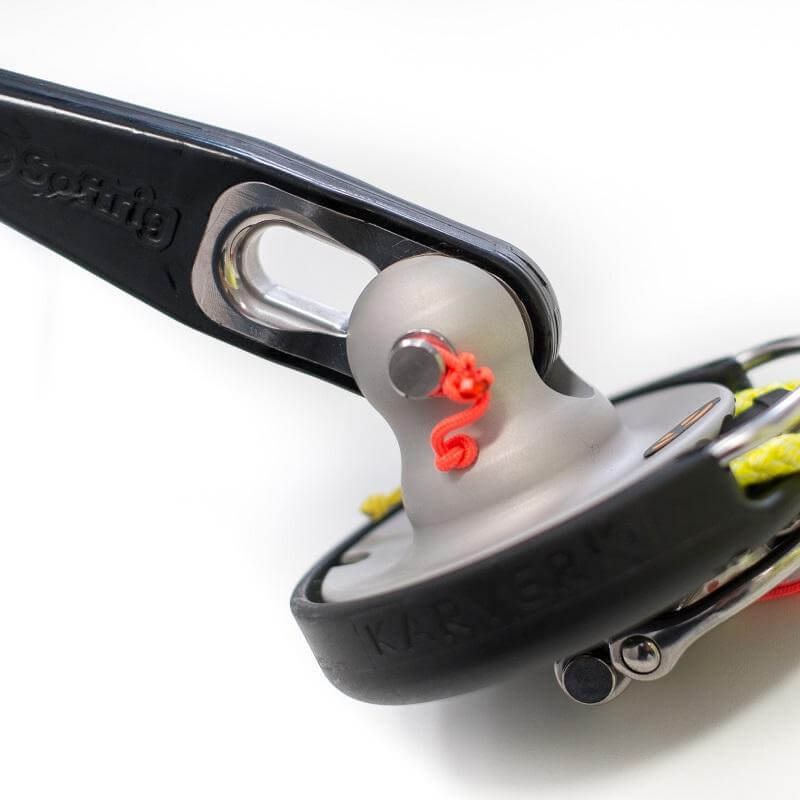

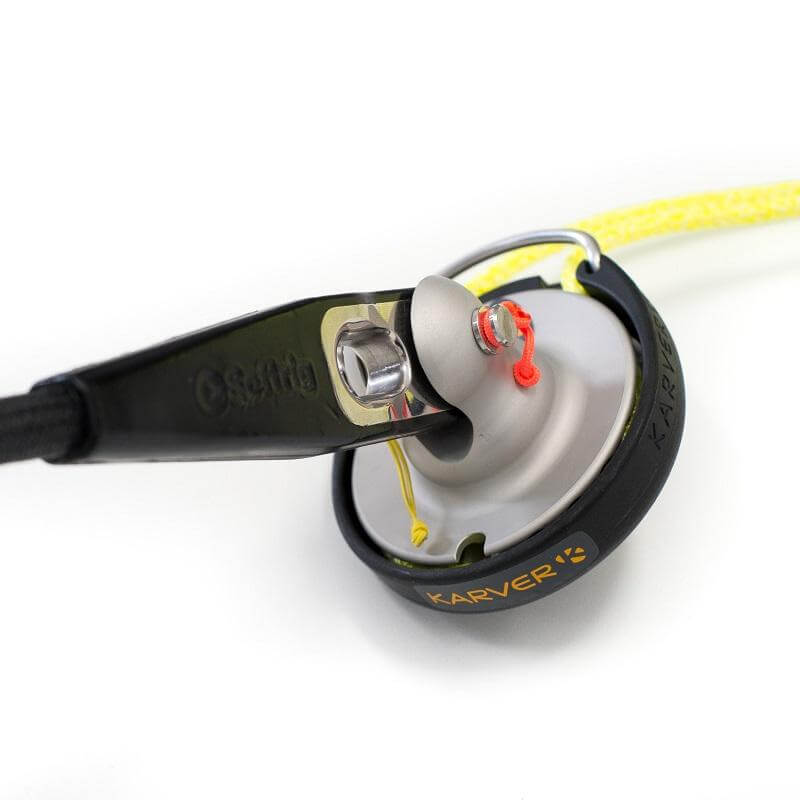

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The PBO core is the performance choice for code zeros and structural furling forestays, offering the lightest weight and smallest diameter. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.
Specifications
| Core material | PBO |
| Cable Ø (mm) | 15.3 |
| Fitting pin Ø (mm) | Max PIN 25 |
| Cable length (mm) | 24500 |
| Fitting width (mm) | 18.5 |
| Dash equivalent | 21 |
| EA (MN) | 13.57 |
| Fitting reference | AT3 |
| Cable weight (g) | 6720 |
| SWL (kg) | 4100 |
| NBL (kg) | 16500 |
