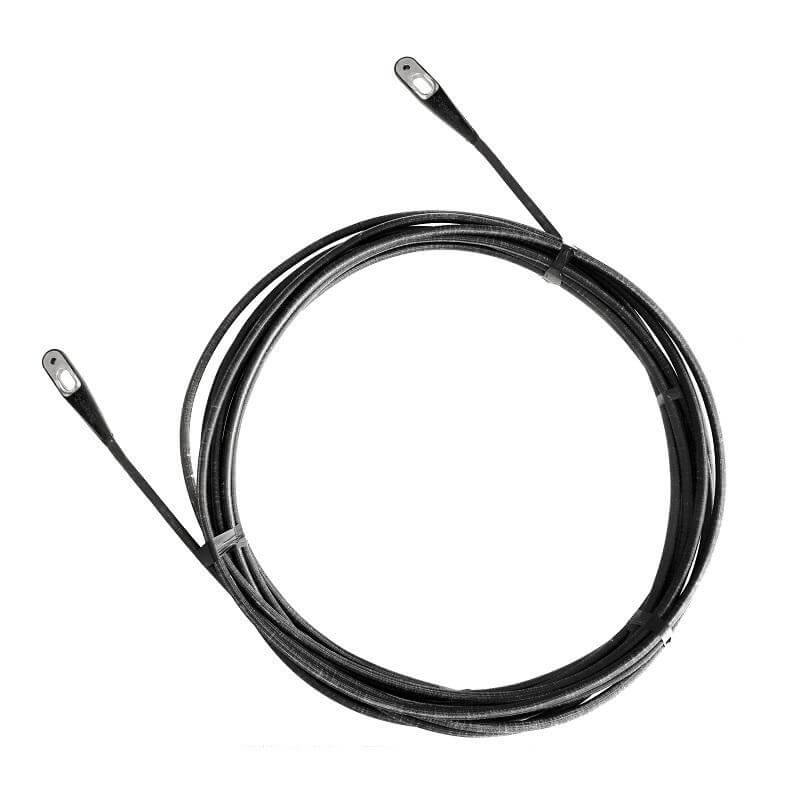

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The SK99 core is increasingly becoming the go-to core fibre for both top-down and bottom-up furling. SK99 gets very close to PBO in terms of performance e.g. weight and diameter, but Dyneema® offers increased durability and complete reliability. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.
Specifications
| Core material | SK99 |
| Cable Ø (mm) | 15.3 |
| Fitting pin Ø (mm) | Max PIN 15 |
| Cable length (mm) | 16000 |
| Fitting width (mm) | 15.5 |
| Dash equivalent | 9 |
| EA (MN) | 5.55 |
| Fitting reference | AT2 |
| Cable weight (g) | 4095 |
| SWL (kg) | 2500 |
| NBL (kg) | 10000 |
