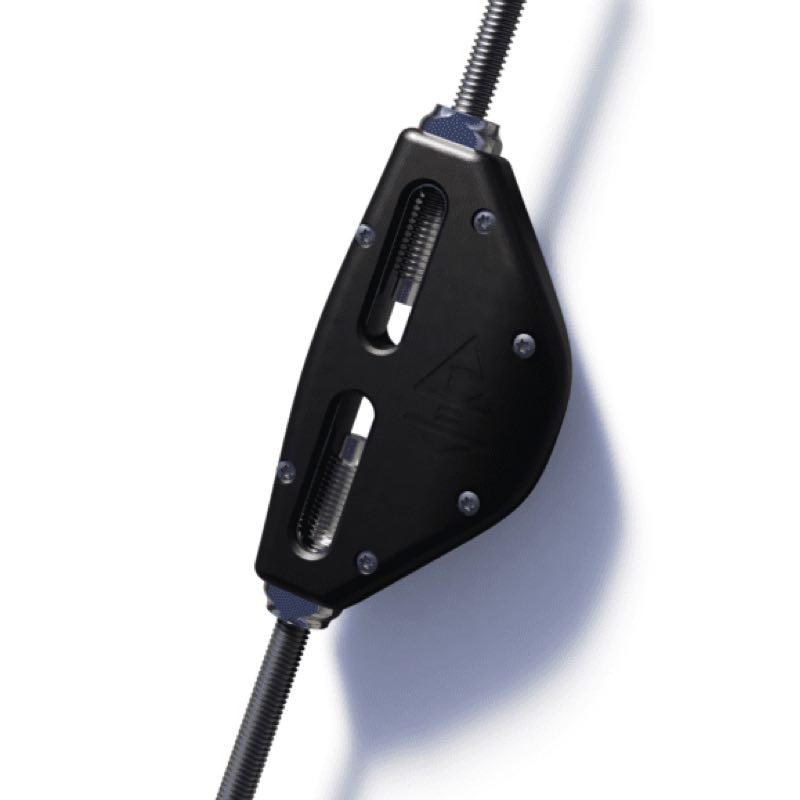

Cyclops Marine smarttune 1/4" – Wireless Load Sensor

The Cyclops Marine smarttune 1/4" is an advanced wireless load sensor, designed to replace standard turnbuckles and provide real-time rigging load data with ±1% accuracy. Optimised for dinghies, sportsboats, and small keelboats, it enables sailors to fine-tune their rigging for repeatable, high-performance settings. With seamless wireless connectivity, simple installation, and a durable marine-grade design, the smarttune 1/4" is a game-changing tool for sailors looking to maximise speed and efficiency.

Key Features & Benefits

✅ Precision Load Monitoring – Delivers ±1% accuracy of the Maximum Working Load (MWL), ensuring precise rig adjustments for optimised sail performance.

✅ Quick & Easy Installation – Replaces an existing turnbuckle with no complex modifications, making it simple to retro-fit.

✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, allowing live load monitoring and data logging.

✅ Extended Battery Life – Provides up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring long-lasting reliability.

✅ Wireless Charging – Charges effortlessly using a Cyclops wireless charging pad, with LED indicators for real-time charge status.

✅ Rugged & Waterproof – Engineered with an IP68-rated waterproof housing, built to withstand demanding marine conditions.

✅ Customisable Data Frequency – Factory-set at 1Hz, with options for customised frequency settings.

Technical Specifications

• Calibrated Load: 0.5 tonnes
• Dimensions: 112 x 55 x 18 mm
• Material: 316L stainless steel body, brass-threaded inserts
• Accuracy: ±1% of MWL between 0-40°C
• Battery Life: Up to 8,000 hours in extended use mode
• IP Rating: IP68

How the smarttune 1/4" Fits into Your Sailing Setup

The smarttune 1/4" is perfect for smaller raceboats, dinghies, and sportsboats, making it ideal for:

✔ Shrouds and sidestays – Maintain repeatable rig tension for performance gains.

✔ Backstays and forestays – Optimise sail trim and mast bend with real-time load data.

✔ Race tuning – Track and refine settings for consistent high-speed sailing.

Safety and Reliability

• Overload Protection: Do not exceed 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
• Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.

Unlock Performance with Real-Time Load Data

The Cyclops Marine smarttune 1/4" transforms rig tuning by providing instant, wireless load intelligence, making it an essential tool for competitive sailors. Whether optimising rig settings for racing or ensuring safe rig tension, this precision-engineered sensor delivers the data needed to sail faster and smarter.

Upgrade your rigging today and take control with real-time load intelligence.
