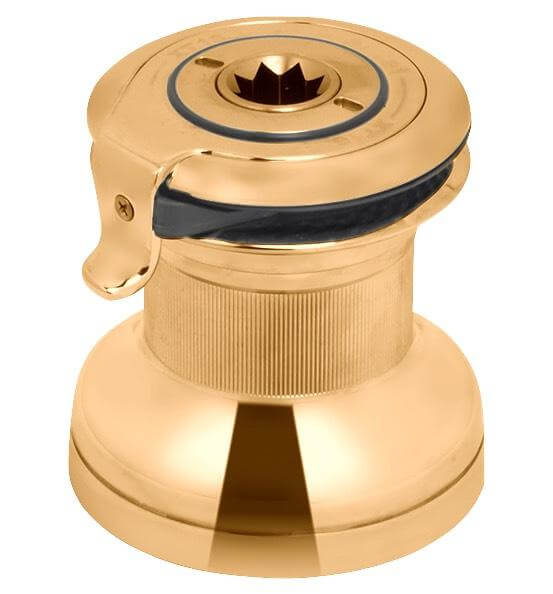

Specifications for Antal 16 2-Speed Self-Tailing Bronze Winch
| Empfohlener max. Leinendurchmesser (mm) | 10 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Größe | 16 |
| Style | Selbstholend |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 115 |
| Basis Ø (mm) | 112 |
| Trommel Ø (mm) | 71 |
| Höhe (mm) | 119 |
| Gänge (manuell) | 2-Speed |
| Garantie (Jahren) | 3 |
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 2 |
| Kraftuntersetzung 1. Gang (X : 1) | 7 |
| Kraftuntersetzung 2. Gang (X : 1) | 14 |
| Gewicht (g) | 3000 |
Two Speed Winch: Direct, Reduced
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way. Both available in chrome (CH) or hard black alloy (AL).
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 10 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Größe | 16 |
| Style | Selbstholend |
| Material | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 115 |
| Basis Ø (mm) | 112 |
| Trommel Ø (mm) | 71 |
| Höhe (mm) | 119 |
| Gänge (manuell) | 2-Speed |
| Garantie (Jahren) | 3 |
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 2 |
| Kraftuntersetzung 1. Gang (X : 1) | 7 |
| Kraftuntersetzung 2. Gang (X : 1) | 14 |
| Gewicht (g) | 3000 |
