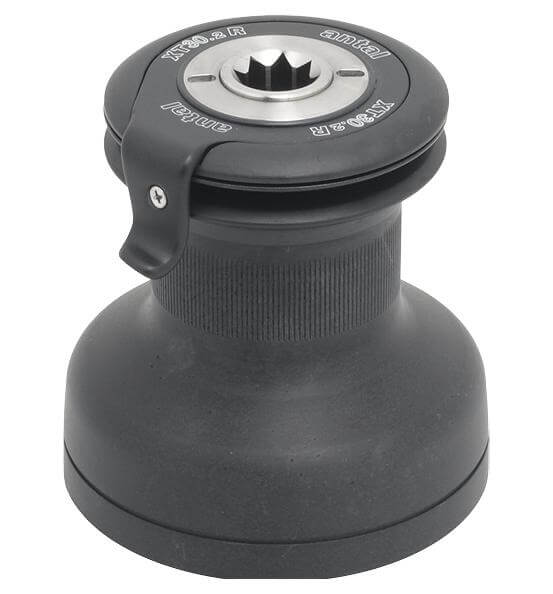

Specifications for Antal 30 2-Speed Self-Tailing Aluminium Race Winch
| Empfohlener max. Leinendurchmesser (mm) | 10 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Größe | 30 |
| Style | Selbstholend |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Basis Ø (mm) | 128 |
| Trommel Ø (mm) | 73 |
| Höhe (mm) | 135 |
| Gänge (manuell) | 2-Speed |
| Garantie (Jahren) | 3 |
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 4.1 |
| Kraftuntersetzung 1. Gang (X : 1) | 7 |
| Kraftuntersetzung 2. Gang (X : 1) | 28 |
| Gewicht (g) | 2200 |
Two Speed Winch: Direct, Reduced
The two smallest models (XT16.2 and XT30.2) have one reduced speed, giving a slow but powerful gear and addition of a direct speed, giving a faster recovery gear, which, combined with reduced weight and an automatic self-tailing for very thin lines, makes these models the best choice for racing.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
XT RACE SERIES: The racing winch series is modelled on the XT winch series, but also includes aluminium stem, peek roller bearings for the drum and the main shaft and lightened gears and main shaft.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 10 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Größe | 30 |
| Style | Selbstholend |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 58 |
| Basis Ø (mm) | 128 |
| Trommel Ø (mm) | 73 |
| Höhe (mm) | 135 |
| Gänge (manuell) | 2-Speed |
| Garantie (Jahren) | 3 |
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 4.1 |
| Kraftuntersetzung 1. Gang (X : 1) | 7 |
| Kraftuntersetzung 2. Gang (X : 1) | 28 |
| Gewicht (g) | 2200 |
