Specifications for Ropeye PRO Loop 50 Padeye
| Material | Karbon or Glasfaser |
| B (mm) | 40 or 60 or 80 |
| Gewicht (g) | 17 or 18 or 19 |
| Tauwerk Ø (mm) | 4 |
| SWL (kg) | 550 |
| NBL (kg) | 1100 |
| A (mm) | 4 |
| C (mm) | 50 |
Ropeye PRO Loop 50 Padeye – High-Performance Multi-Directional Soft Attachment
NOTE: This product is sold as the Loop/pad only - TDP deck bushings and and SLR rope thimbles must be purchased separately

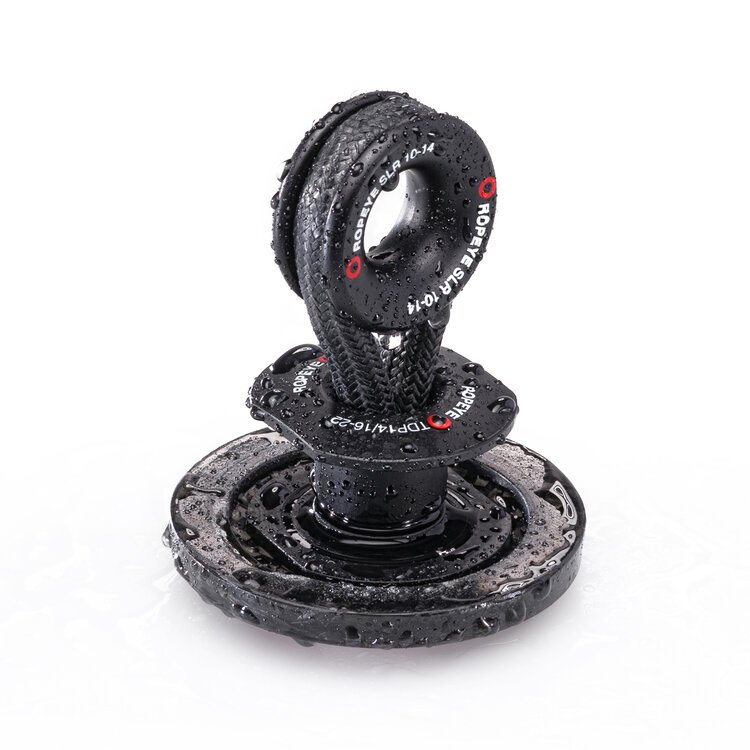

The Ropeye PRO Loop 50 Padeye is an advanced, high-strength soft attachment point designed for through-deck installations. Unlike traditional padeyes, the PRO Loop features a curved base that evenly distributes loads, maintaining its full safe working load in all directions. When paired with the Ropeye Double TDP deck bushing and Ropeye SLR rope thimble, it creates a lightweight, low-profile, and ultra-strong through-deck solution.
Available in three loop lengths – 40mm, 60mm, and 80mm – the Ropeye PRO Loop 50 is offered with either a carbon or glass fibre base, providing flexibility for different performance and durability needs.
Key Features:
✔ Multi-Directional Load Handling – Designed to withstand forces from all angles without reducing the safe working load.
✔ Curved Base for Even Load Distribution – Ensures optimal strength and longevity under extreme loads.
✔ Designed for Through-Deck Applications – Must be used with a Ropeye Double TDP deck bushing to reinforce the deck and protect the loop.
✔ Optimised for SLR Rope Thimbles – The use of a Ropeye SLR thimble is recommended to prevent premature wear and extend service life.
✔ Customisable Options – Available in 40mm, 60mm, and 80mm loop lengths, with a choice of carbon or glass fibre base.
✔ Ultra-Strong & Lightweight – Engineered for demanding loads while keeping weight to a minimum.
Applications:
- High-performance soft padeye alternative for extreme load applications.
- Ideal for securing blocks, control lines, and soft rigging attachments.
- Used in racing yachts, offshore cruising, and lightweight performance setups.
Installation:
- Drill the installation hole to the correct size.
- Clean the area with acetone to ensure a strong bond.
- Insert and tighten the Ropeye Double TDP deck bushing to reinforce the deck and guide the loop.
- Apply adhesive and press the Ropeye PRO Loop 50 into place.
- Attach the Ropeye SLR rope thimble to the loop for added durability.
- Wait 24 hours before applying any load to allow for full curing.
Warranty: The Ropeye PRO Loop 50 Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Spezifikationen
| Material | Karbon oder Glasfaser |
| B (mm) | 40 oder 60 oder 80 |
| Gewicht (g) | 17 oder 18 oder 19 |
| Tauwerk Ø (mm) | 4 |
| SWL (kg) | 550 |
| NBL (kg) | 1100 |
| A (mm) | 4 |
| C (mm) | 50 |
