Specifications for Ropeye PRO Loop 70 Padeye
| Matériau | Carbone or Glass fibre |
| B (mm) | 120 or 80 or 100 |
| Poids (g) | 50 or 53 or 55 |
| Ø cordage (mm) | 8 |
| Charge de travail (kg) | 1750 |
| Charge de rupture (kg) | 3500 |
| A (mm) | 8 |
| C (mm) | 70 |

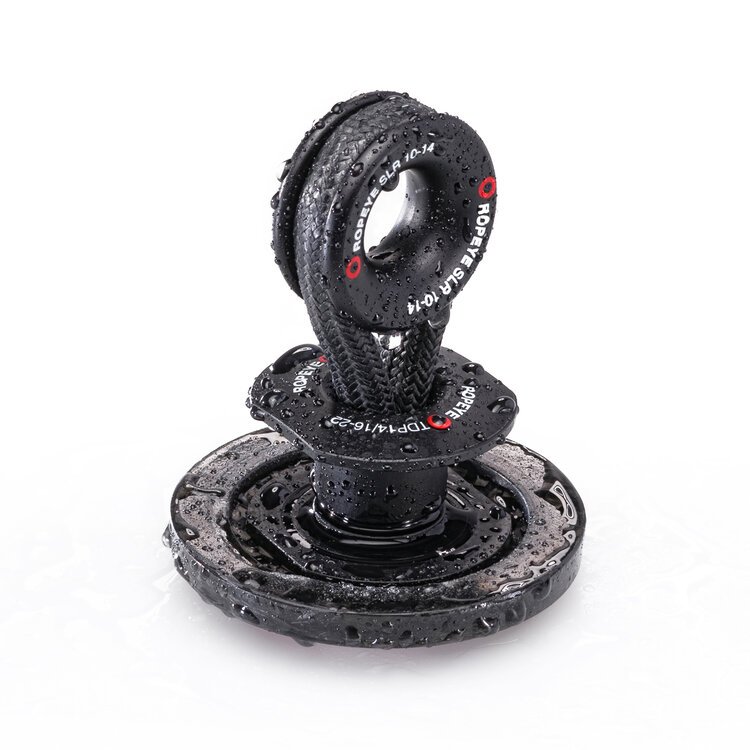

Ropeye PRO Loop 70 Padeye – Heavy-Duty Multi-Directional Soft Attachment
NOTE: This product is sold as the Loop/pad only - TDP deck bushings and and SLR rope thimbles must be purchased separately
The Ropeye PRO Loop 70 Padeye is the largest and strongest in the PRO Loop range, designed for through-deck installations where maximum load capacity and durability are required. With a curved base that evenly distributes loads, it maintains its full safe working load in all directions, making it an ideal choice for high-load applications. When paired with the Ropeye Double TDP deck bushing and Ropeye SLR rope thimble, it provides an exceptionally strong, low-profile, and lightweight through-deck solution.
Available in three loop lengths – 80mm, 100mm, and 120mm – the Ropeye PRO Loop 70 is offered with either a carbon or glass fibre base, allowing sailors to select the best option for their specific performance and durability needs.
Key Features:
✔ Multi-Directional Load Handling – Engineered to withstand forces from all angles without reducing the safe working load.
✔ Curved Base for Even Load Distribution – Ensures maximum strength and longevity under extreme loads.
✔ Designed for Through-Deck Applications – Must be used with a Ropeye Double TDP deck bushing to reinforce the deck and protect the loop.
✔ Optimised for SLR Rope Thimbles – The use of a Ropeye SLR thimble is recommended to prevent premature wear and extend service life.
✔ Customisable Options – Available in 80mm, 100mm, and 120mm loop lengths, with a choice of carbon or glass fibre base.
✔ Extreme Strength & Lightweight Design – Built for the toughest applications while minimising weight.
Applications:
- Heavy-duty soft padeye replacement for extreme load scenarios.
- Ideal for securing blocks, control lines, and soft rigging attachments.
- Used in offshore racing yachts, superyachts, and high-performance sailing setups.
Installation:
- Drill the installation hole to the correct size.
- Clean the area with acetone to ensure a strong bond.
- Insert and tighten the Ropeye Double TDP deck bushing to reinforce the deck and guide the loop.
- Apply adhesive and press the Ropeye PRO Loop 70 into place.
- Attach the Ropeye SLR rope thimble to the loop for added durability.
- Wait 24 hours before applying any load to allow for full curing.
Warranty: The Ropeye PRO Loop 70 Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Spécifications
| Matériau | Carbone ou Glass fibre |
| B (mm) | 120 ou 80 ou 100 |
| Poids (g) | 50 ou 53 ou 55 |
| Ø cordage (mm) | 8 |
| Charge de travail (kg) | 1750 |
| Charge de rupture (kg) | 3500 |
| A (mm) | 8 |
| C (mm) | 70 |
