Specifications for Ropeye SLR 14-20 Rope Thimble
| Gesamtbreite (mm) | 20 |
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Innendurchmesser (mm) | 20 |
| Aussendurchmesser (mm) | 46 |
| Material | Aluminium |
| Max. Außendurchmesser (mm) | 14 |
| SWL (kg) | 2080 |
| NBL (kg) | 3200 |
| A (mm) | 14 |
| B (mm) | 20 |
| C (mm) | 20 |
| D (mm) | 46 |
| Gewicht (g) | 30 |

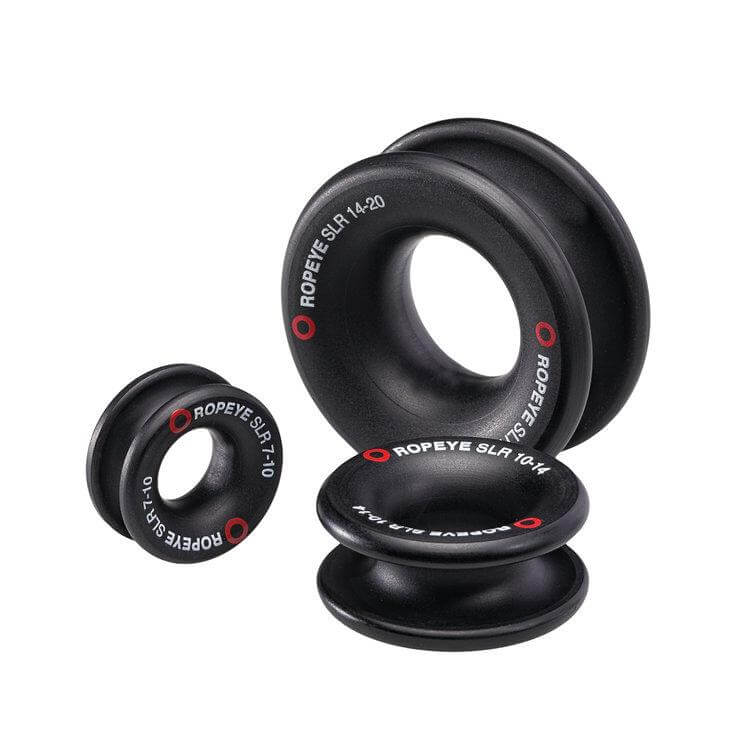

SLR 14-20 Rope Thimble – High-Strength, Lightweight Rigging Solution
The SLR 14-20 Rope Thimble is a self-locking aluminium ring designed to provide a strong, lightweight, and low-friction solution for modern rigging applications. Its innovative design locks the rope securely inside the channel, ensuring reliable performance in high-load scenarios while maintaining minimal weight.
Key Features:
✔ Self-Locking Design – The unique shape securely holds the rope in place, offering a dependable alternative to traditional metal thimbles.
✔ Lightweight Aluminium Construction – High-quality aluminium provides excellent strength-to-weight performance, weighing only 30g.
✔ Optimised for Single & Double Braid Ropes – Versatile design accommodates a variety of rope types and applications.
✔ Outstanding Strength – With a maximum breaking load of 3200kg and a safe working load (SWL) of 2080kg, this thimble is built for demanding sailing environments.
✔ Compact & Efficient Design – Featuring an outer diameter of 46mm, an inner diameter of 20mm, and a width of 20mm, it integrates seamlessly into rigging systems.
Applications:
- Ideal for soft attachments, friction loops, and high-load sailing systems.
- Reduces friction and wear on control lines in both racing and cruising yachts.
- A lightweight and durable replacement for traditional thimbles in modern rigging setups.
Installation:
To install, stretch the loop open and slide in the SLR, then close the loop to lock it securely. Ensure the safe working load is not exceeded for maximum durability and performance.
Warranty: This product comes with a 2-year warranty, ensuring long-term reliability and confidence in performance.
Spezifikationen
| Gesamtbreite (mm) | 20 |
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Innendurchmesser (mm) | 20 |
| Aussendurchmesser (mm) | 46 |
| Material | Aluminium |
| Max. Außendurchmesser (mm) | 14 |
| SWL (kg) | 2080 |
| NBL (kg) | 3200 |
| A (mm) | 14 |
| B (mm) | 20 |
| C (mm) | 20 |
| D (mm) | 46 |
| Gewicht (g) | 30 |
