Specifications for Ropeye Stick-On Eyestrap
| Material | Karbonfaser |
| SWL (kg) | 25 |
| NBL (kg) | 35 |
| A (mm) | 8 |
| B (mm) | 50 |
| C (mm) | 14 |
| Gewicht (g) | 2 |

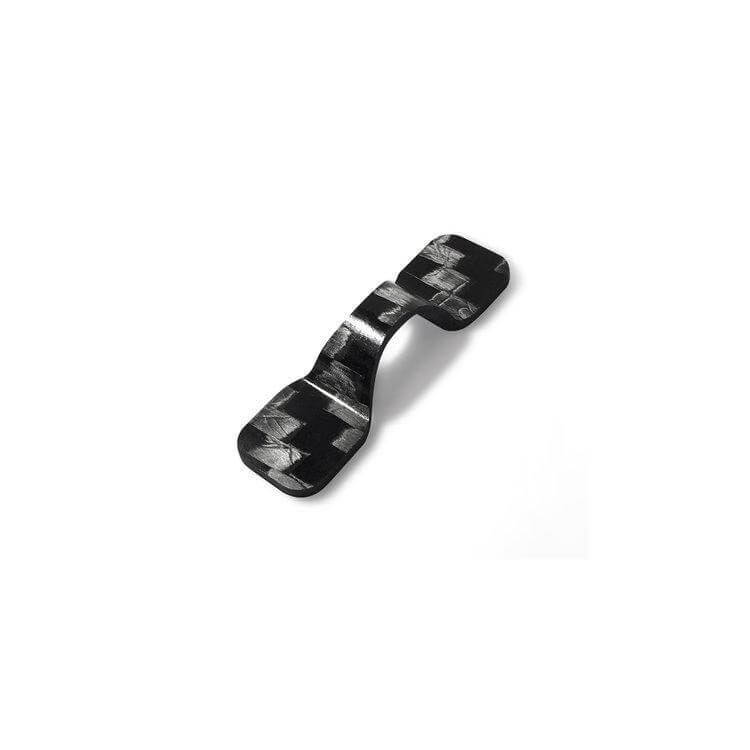

Ropeye Stick-On Eyestrap – Ultra-Lightweight Carbon Guide & Attachment Point
The Ropeye Stick-On Eyestrap is a super-lightweight, adhesive-mounted carbon eye strap, designed for non-structural applications where bonding is preferable to drilling. Ideal for internal use, this sleek and strong eyestrap provides a low-profile guiding or attachment point for light loads, making it perfect for organising lines, cables, or securing equipment in weight-sensitive applications.
Key Features:
✔ Bonded Installation – No Drilling Required – Mounts securely using resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Ultra-Lightweight Carbon Construction – Strong yet extremely light, keeping weight to a minimum.
✔ Versatile Guiding & Attachment Point – Functions as both a fairlead for light lines and a soft attachment point for securing non-load-critical equipment.
✔ Non-Structural Design – Designed for low-load, mainly internal applications, offering an alternative to traditional metal eye straps.
✔ Safe Working Load of 25kg – Suitable for cable management, light-duty rigging, and soft attachment points.
Applications:
- Guiding and securing control lines in internal areas.
- Cable management and organisation for a clean, efficient setup.
- Attaching lightweight accessories where drilling is not an option.
- Ideal for racing yachts, dinghies, and performance boats where weight savings are essential.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye Stick-On Eyestrap firmly into place.
- Wait 24 hours before applying any load to allow for full adhesion.
Warranty: The Ropeye Stick-On Eyestrap comes with a 2-year warranty, ensuring long-term reliability and performance.
Spezifikationen
| Material | Karbonfaser |
| SWL (kg) | 25 |
| NBL (kg) | 35 |
| A (mm) | 8 |
| B (mm) | 50 |
| C (mm) | 14 |
| Gewicht (g) | 2 |
