Specifications for Ropeye Stick-On Ring (7-10) Fairlead
| Material | Aluminium or Karbon or Glasfaser |
| Empfohlener max. Leinendurchmesser (mm) | 7 |
| Style | Soft |
| SWL (kg) | 50 |
| NBL (kg) | 100 |
| A (mm) | 10 |
| B (mm) | 50 |
| C (mm) | 4 |
| D (mm) | 3 |
| Gewicht (g) | 17 |

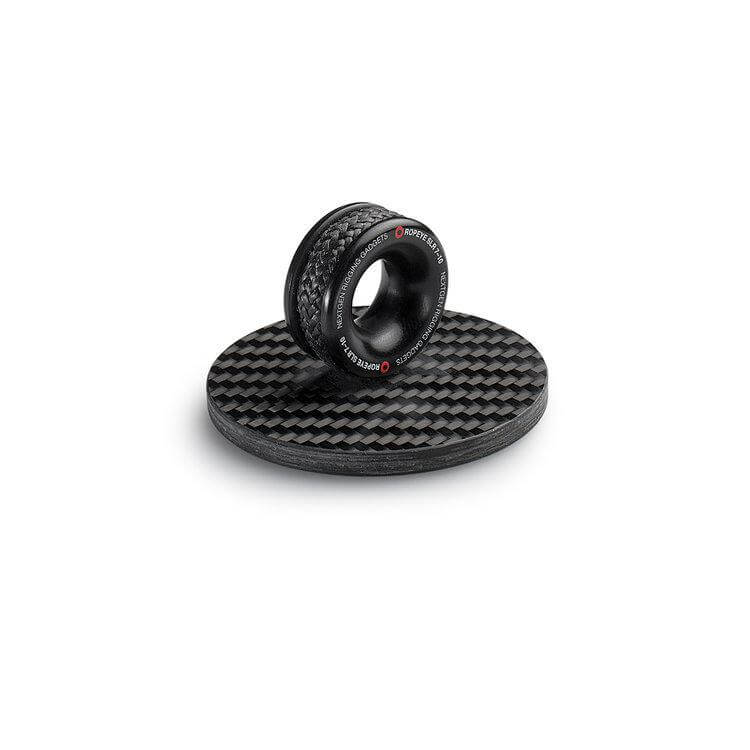

Ropeye Stick-On Ring (7-10) Fairlead – Lightweight & Adhesive-Mounted Line Guide
The Ropeye Stick-On Ring (7-10) Fairlead is a low-load, adhesive-mounted fairlead, designed to provide a simple and effective guiding solution for control lines on decks, masts, booms, or even internal locations. This innovative design eliminates the need for drilling, making it ideal for lightweight and retrofit applications. Integrated with the Ropeye SLR 7-10 Rope Thimble, it offers a smooth, low-friction passage for lines while keeping weight to a minimum.
Key Features:
✔ Easy Adhesive Installation – No drilling required; mounts securely using resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Lightweight & Durable Construction – Made from carbon and anodised aluminium, ensuring strength with minimal weight.
✔ Smooth Line Guidance – The integrated SLR 7-10 Rope Thimble allows for a low-friction and secure guiding point for control lines.
✔ Multi-Surface Compatibility – Can be installed on decks, masts, booms, or internally, offering versatile rigging solutions.
✔ Safe Working Load of 50kg – Ideal for low-load applications, helping to organise and guide lines efficiently.
Applications:
- Guiding control lines on decks, masts, and booms.
- Ideal for dinghies, lightweight boats, and performance rigs where drilling is undesirable.
- Internal cable or rope management without permanent modifications.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye Stick-On Ring firmly into place.
- Wait 24 hours before applying any load to ensure full adhesion.
Warranty: The Ropeye Stick-On Ring (7-10) Fairlead comes with a 2-year warranty, ensuring long-term reliability and performance.
Spezifikationen
| Material | Aluminium oder Karbon oder Glasfaser |
| Empfohlener max. Leinendurchmesser (mm) | 7 |
| Style | Soft |
| SWL (kg) | 50 |
| NBL (kg) | 100 |
| A (mm) | 10 |
| B (mm) | 50 |
| C (mm) | 4 |
| D (mm) | 3 |
| Gewicht (g) | 17 |
