Specifications for Ropeye XS Padeye
| Matériau | Carbone or Glass fibre |
| Charge de travail (kg) | 100 |
| Charge de rupture (kg) | 200 |
| A (mm) | 3 |
| B (mm) | 30 |
| C (mm) | 40 |
| D (mm) | 3 |
| Poids (g) | 6 |

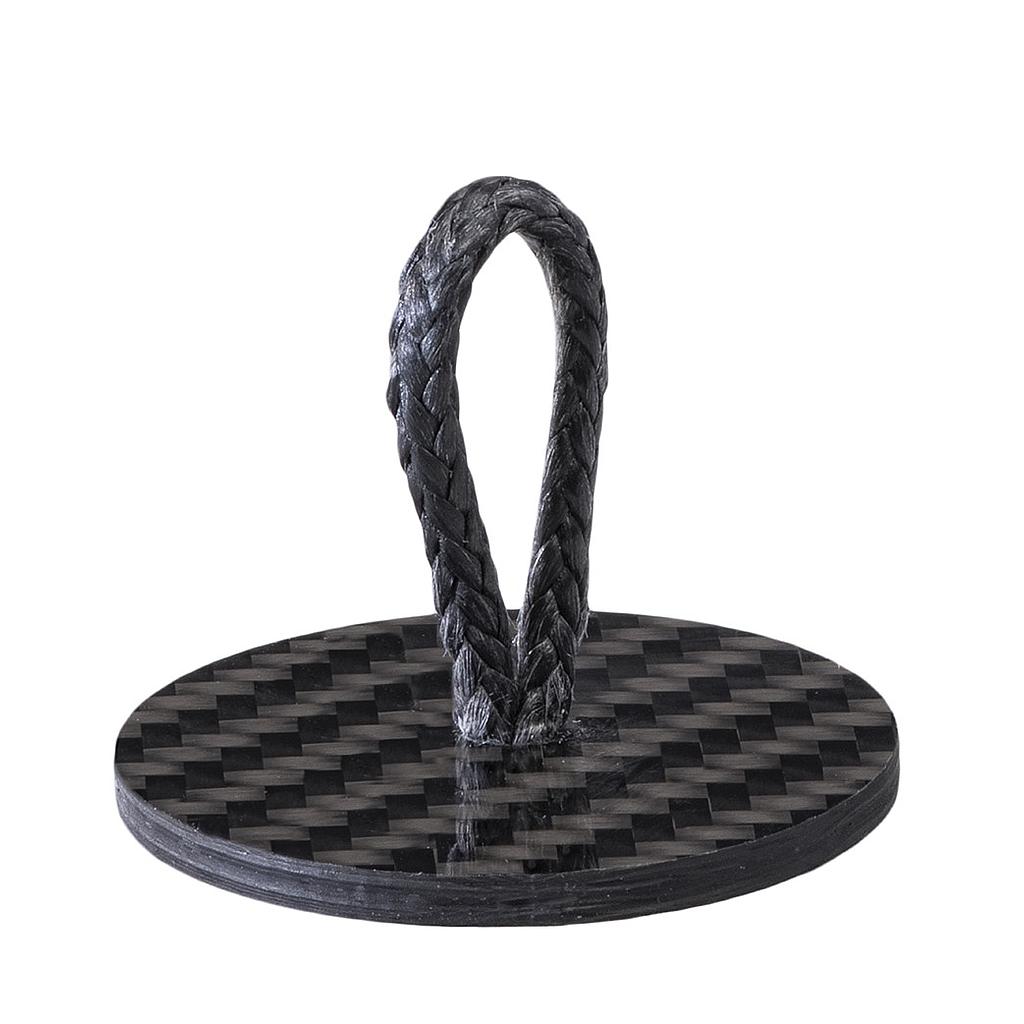

Ropeye XS Padeye – Ultra-Lightweight & Bonded Soft Attachment Point
The Ropeye XS Padeye is part of the popular Ropeye X-Family, which includes the X, XS, and XXS sizes—each offering a lightweight, adhesive-mounted attachment solution for securing equipment without the need for drilling. Designed for non-structural applications, the XS model provides a low-profile, high-strength fixing point, making it ideal for organising equipment, securing control lines, and soft rigging solutions.
Constructed from carbon or glass fibre, the Ropeye XS Padeye ensures maximum strength with minimal weight, making it a perfect choice for interior and lightweight external installations where a bonded attachment is preferred over traditional fastenings.
Key Features:
✔ Part of the Ropeye X-Family – Available in X, XS, and XXS sizes, providing a versatile range of lightweight bonded padeyes.
✔ Bonded Installation – No Drilling Required – Secures in place using resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Ultra-Lightweight & Durable Construction – Built from carbon or glass fibre, ensuring high strength with minimal weight.
✔ Soft Attachment Point – Designed for lines up to 3mm in diameter, offering a secure yet flexible fixing option.
✔ Multi-Purpose Design – Ideal for organising equipment, securing control lines, or soft rigging attachments.
✔ Safe Working Load of 100kg – A reliable attachment for low-load, non-structural applications.
Applications:
- Interior and lightweight external installations where drilling is not an option.
- Soft attachment points for securing equipment, control lines, or accessories.
- Racing yachts, dinghies, and performance boats where weight savings are critical.
- Cabins, bulkheads, and internal organisation solutions.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye XS Padeye firmly into place.
- Wait 24 hours before applying any load to allow for full adhesion.
Warranty: The Ropeye XS Padeye comes with a 2-year warranty, ensuring long-term reliability and performance.
Spécifications
| Matériau | Carbone ou Glass fibre |
| Charge de travail (kg) | 100 |
| Charge de rupture (kg) | 200 |
| A (mm) | 3 |
| B (mm) | 30 |
| C (mm) | 40 |
| D (mm) | 3 |
| Poids (g) | 6 |
