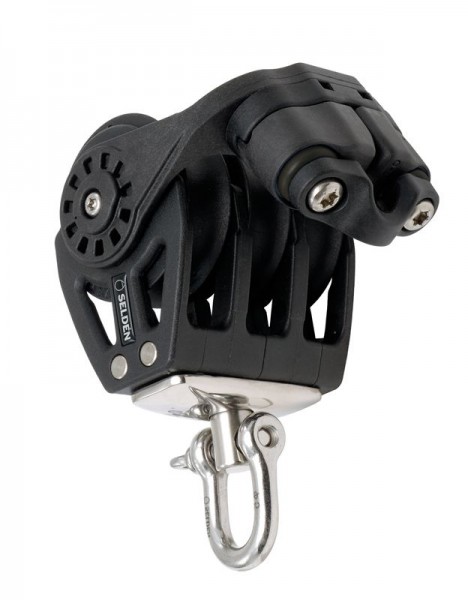

Ball bearing blocks for dynamic loads. Acetal discs Axles made of high-strength stainless steel Housing made of composite material Stainless steel balls with acetal spacers to avoid friction between the steel balls Designation Disc Ø mm Working load kg Breaking load kg max. line- Ø mm Shackle shackle- Ø mm BBB40, three-row with clamp 40 450* 900 7 5 BBB60, three-plate with clamp 60 600* 1,200 10 5 * Based on the working load of the clamp
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Shackle pin Ø (mm) | 5 |
| Empfohlener max. Leinendurchmesser (mm) | 7 |
| Scheibe Ø (mm) | 40 |
| SWL (kg) | 450.0 |
| NBL (kg) | 900.0 |
