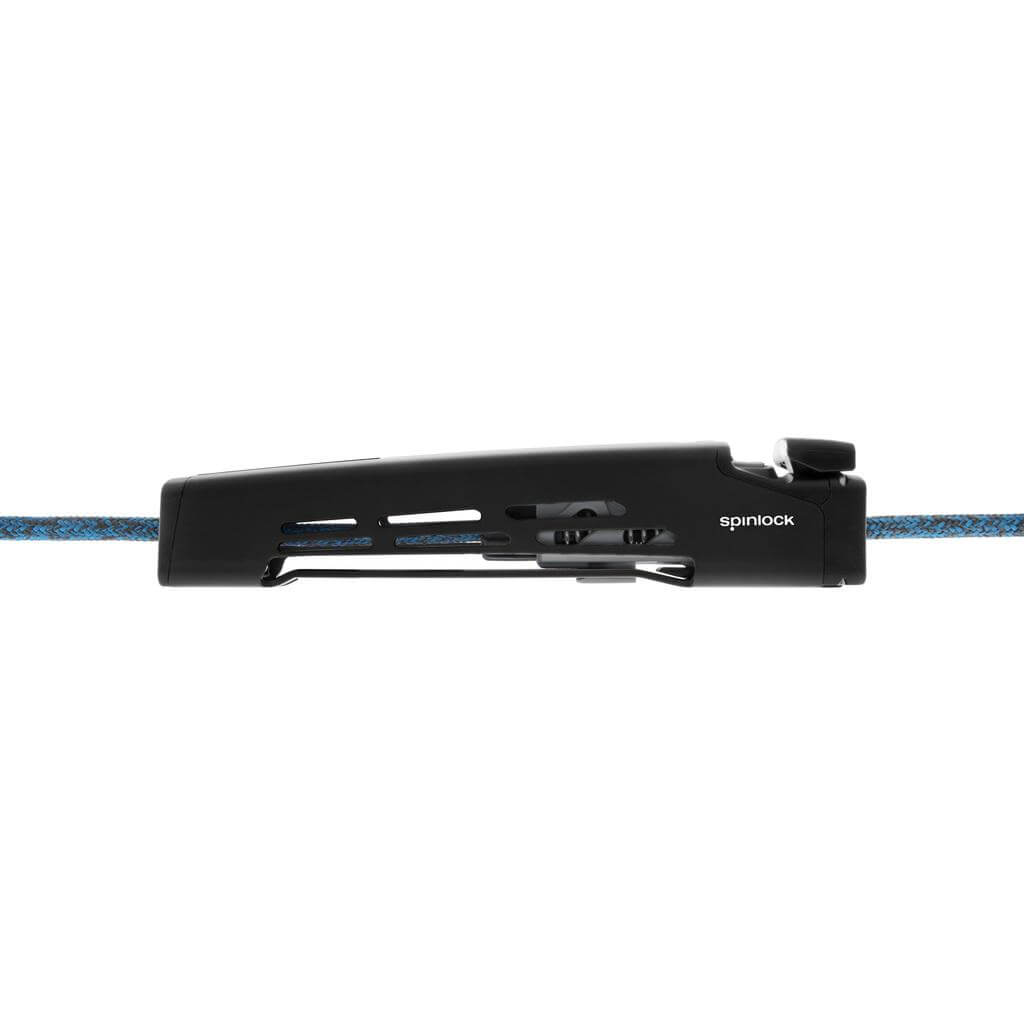

Drawing on experience in both mechanical and textile product design the new XTX Soft Grip Clutch uses a combination of new materials to offer mid load rope holding in a lightweight, compact device. Using an innovative new braided ‘soft grip’ technology to engage and hold a loaded line, the XTX benefits from being very ‘kind’ to the rope cover with a controlled and easy release.
Ultra-lightweight mid-load rope holding
Optimised SOFTGRIP braid with high-performance braid anchor technology
Gentle on rope covers - increase the lifecycle of your ropes
Neat, retracting toggle for fingertip control of clutching power
Controlled and consistent release across full range of loads
Push button clutch activation with lock-open indicator
Full enclosed body protects against accidental release
Small footprint and very low profile with no handle rotation space required
Simple, versatile installation – 2 fasteners for deck, bulkhead, rig or tunnel mounting
Remote release capability
Easy set-up, no performance tuning required
On-deck access for cleaning or replacing SOFTGRIP diameter changes
Spezifikationen
| Farbe | Schwarz oder Blau oder Orange oder Weiß oder Gelb |
| Gesamtbreite (mm) | 36 |
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 12 |
| Gesamthöhe (mm) | 57,5 |
| Gesamtlänge (mm) | 264 |
| SWL (kg) | 1200 |
| Gewicht (g) | 375 |
