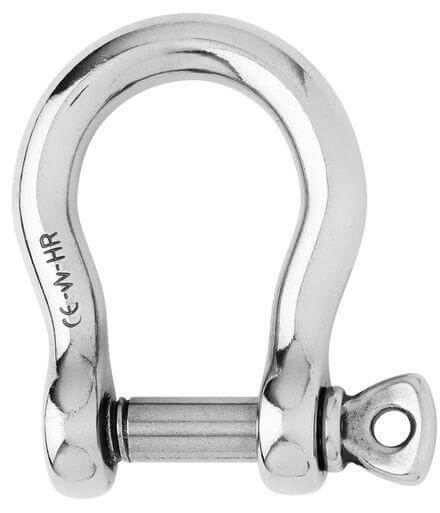

Forged bow shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Applications requesting high loads
To be used when ample room is required
Possibility to attach several lines or cables
Do not use for mooring applications
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
Material | Edelstahl |
Material Grade | AISI 630 (17-4 / HR) |
Pin Ø (mm) | 14 |
SWL (kg) | 5120 |
NBL (kg) | 12000 |
A (mm) | 63 |
B (mm) | 28 |
C (mm) | 14 |
D (mm) | 28 |
E (mm) | 13 |
M (mm) | 72 |
Gewicht (g) | 364 |
