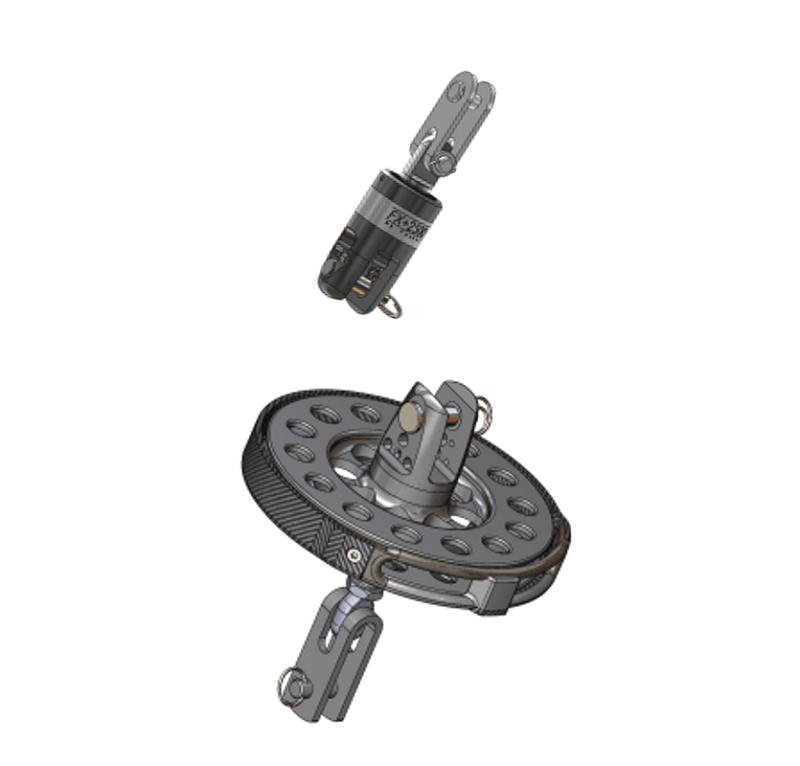

The Flatfurl (FLT) range is Facnor’s low profile, structural furling forestay solution. The range is perfect for racing boats, with its compact and light design. They have proven their outstanding performance in sailing’s version of the Tour de France (Tour Voile) as well as on many sports boats and small cruisers! Key features: - Extra flat drum with carbon housing - Longer luff due to their low-profile mechanism - Discontinuous furling line – simple to use and keeps side-decks clearer - Large diameter drum provides more furling power - Easy to operate The standard FLT kit includes: drum, top swivel (both with toggles). N.B. Halyard swivel for wire forestays, available separately.
Specifications
| Recommended line - Max Ø (mm) | 4 |
| Recommended Boat size - Max (ft) | 31 |
| Recommended Boat size - Min (ft) | 24 |
| Jaw pin Ø (mm) | 10 |
| Jaw width (mm) | 17.5 |
| Pin Ø (mm) | 9.5 |
| Drum Ø (mm) | 167 |
| Wire Ø Max (mm) | 5 |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Weight (g) | 1464 |
