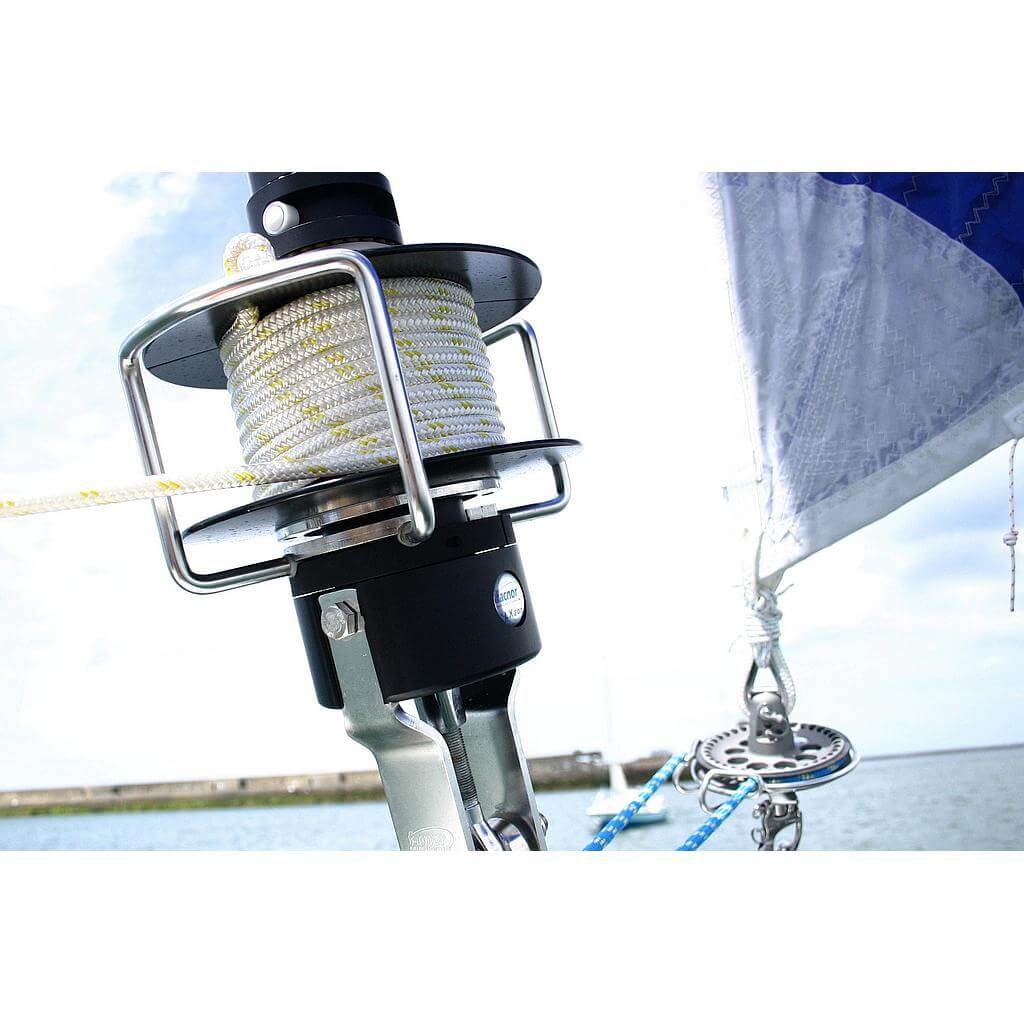

The LS/LX/RX ranges are Facnor’s well established, genoa reefing furlers with aluminium foil section. Their extensive range has been tried and tested repeatedly by marine professionals and offshore sailors, with proven performance, durability and reliability. The RX range is an “upgraded” racing version of the LS range and features a removable drum, a rotating tack fitting, a stainless-steel sail feeder and low profile, elliptical foil sections. The rotating tack fitting automatically takes up the sail fullness when furling and helps to provide better sail shape, whilst the removable drum facilitates a swift change into a twin groove head foil, ready for racing.
Facnor RX Furlers have the following key features:
Easy installation
Strong sections & connections
Rugged, 30µ Anodized Aluminium protects parts against impacts and abrasion
360° furling line angle adjustment, for perfect alignment
Optional, internal turnbuckle fitting
High load, waterproof halyard swivel
No maintenance bearings – fitted with a “bearing box”, tested over ocean races
Elliptical sections, for better aerodynamic performance
The RX Standard kit includes: Drum, internal turnbuckle fitting, short link plates, foil sections + connections, halyard swivel, HR shackles.
Specifications
| Rope Ø (mm) | 8 |
| Recommended Boat size - Max (ft) | 42 |
| Recommended Boat size - Min (ft) | 32 |
| Extrusion Ø (mm) | 29 |
| Headstay length Std. (mm) | 14500 |
| Drum Ø (mm) | 225 |
| Luff rope Ø (mm) | 7 |
| Wire Ø Max (mm) | 10 |
| Extrusion reference | R26 |
| Extrusion weight (g/m) | 641 |
