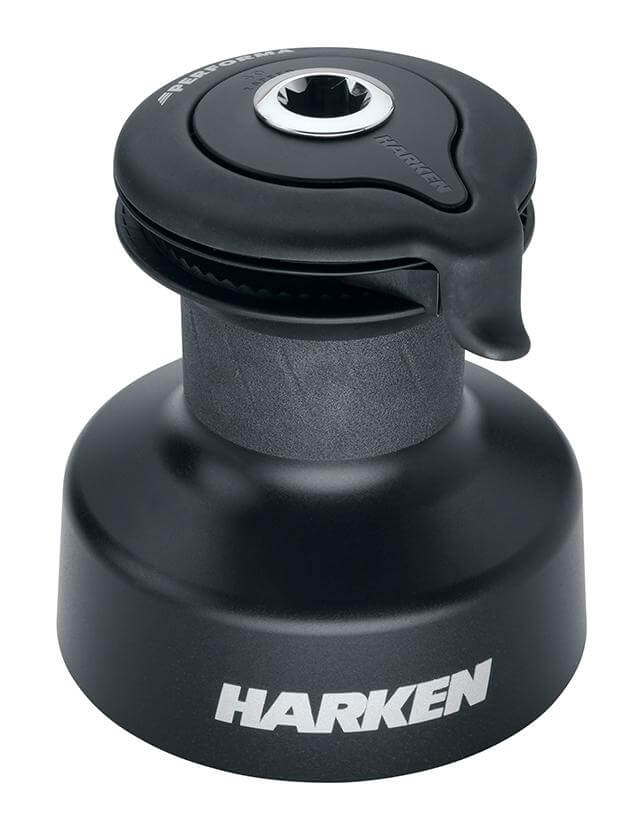

Specifications for Harken 40 2-Speed S/T Performa™ Winch
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 40 |
| Style | Self-Tailing |
| Matériau | Aluminum |
| Diamètre de l'embase | 157 |
| Ø tourelle (mm) | 80 |
| Hauteur (mm) | 175 |
| Hauteur d’entrée du cordage (mm) | 82 |
| Vitesse (manuelle) | 2 vitesses |
| Charge de travail (kg) | 850 |
| A (mm) | 80 |
| B (mm) | 157 |
| C (mm) | 175 |
| D (mm) | 82 |
| Vitesse 1 (X : 1) | 2,13 |
| Vitesse 2 (X : 1) | 6,28 |
| Puissance 1 (X : 1) | 13,5 |
| Puissance 2 (X : 1) | 39,9 |
| Poids (g) | 3800 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Spécifications
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Taille | 40 |
| Style | Self-Tailing |
| Matériau | Aluminum |
| Diamètre de l'embase | 157 |
| Ø tourelle (mm) | 80 |
| Hauteur (mm) | 175 |
| Hauteur d’entrée du cordage (mm) | 82 |
| Vitesse (manuelle) | 2 vitesses |
| Charge de travail (kg) | 850 |
| A (mm) | 80 |
| B (mm) | 157 |
| C (mm) | 175 |
| D (mm) | 82 |
| Vitesse 1 (X : 1) | 2,13 |
| Vitesse 2 (X : 1) | 6,28 |
| Puissance 1 (X : 1) | 13,5 |
| Puissance 2 (X : 1) | 39,9 |
| Poids (g) | 3800 |
