Specifications for Harken FlatWinder™ 500
| Voltage Variant (V) | 12 or 24 or 48 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 6 |
| Cordage recommandé – Ø Max (mm) | 10 |
| Hauteur d’entrée du cordage (mm) | 29 |
| Charge de travail (kg) | 500 |

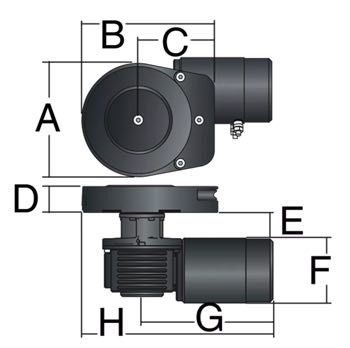

| A (mm) | 242 |
| B (mm) | 273 |
| C (mm) | 152 |
| D (mm) | 53 |
| E (mm) | 71 |
| F (mm) | 231 |
| G (mm) | 363 |
| H (mm) | 484 |
| Poids (g) | 22500 |

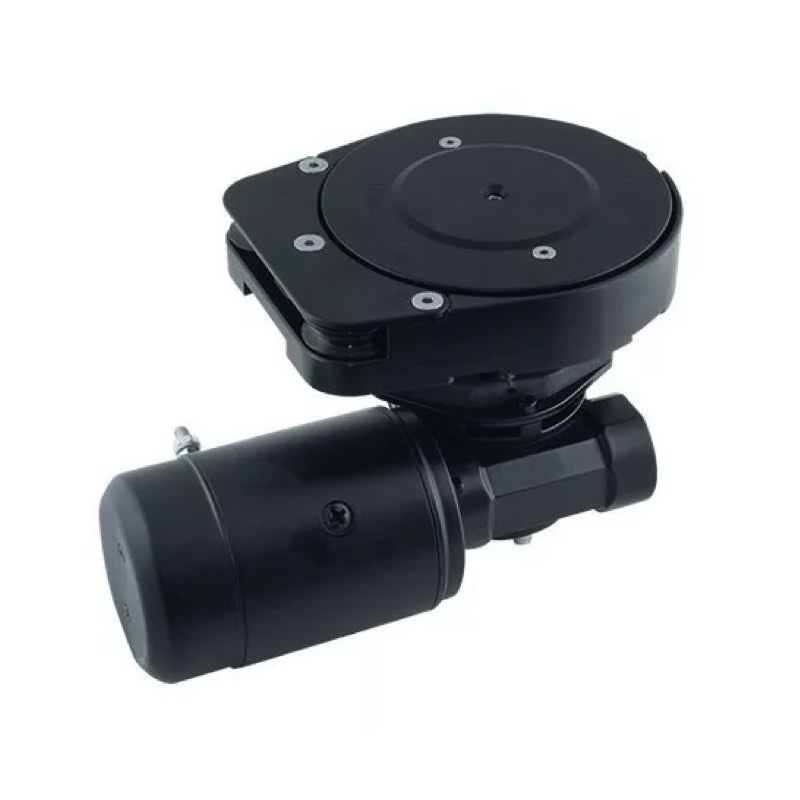

Harken FlatWinder™ 500 – Versatile Line-Driving Power for Your Deck
The Harken FlatWinder™ 500 is an advanced electric and hydraulic line driver, engineered to provide hands-free, precision control over loaded lines on sailing yachts. Ideal for applications such as mainsail traveler adjustment, jib inhauls, and outhauls, the FlatWinder 500 enhances performance while reducing manual effort and deck clutter.
Key Features:
- Multiple Power Options: Available in electric (12V, 24V, 48V) and hydraulic configurations, ensuring compatibility with various onboard power systems.
- High Load Capacity: Capable of handling up to 500 kg (1102 lbs) of working load, making it ideal for demanding line-handling applications.
- Compact & Low-Profile Design: The flat deck-mounted structure eliminates the need for traditional winches, creating a cleaner and more efficient deck layout.
- Automatic Line Handling: The powered drum continuously rotates, managing sheet loads and preventing slack accumulation for effortless trimming.
- Smooth & Reliable Performance: Features Harken's advanced motor, gearbox, and hydraulic system technology for efficient power transmission and precise speed control.
- Built for Harsh Marine Environments: Constructed from anodized aluminium and marine-grade materials, ensuring durability in saltwater conditions.
- Flexible Installation Options: Designed for easy deck mounting, with multiple positioning configurations to suit different boat layouts.
FlatWinder™ Range – Two Sizes, Multiple Power Options
The Harken FlatWinder™ series consists of two models, each available in both electric and hydraulic versions:
- FlatWinder™ 250 – Supports loads up to 250 kg, ideal for smaller applications.
- FlatWinder™ 500 – Handles up to 500 kg for high-load sailing controls.
Each model is available in three electric voltage options (12V, 24V, and 48V) as well as a hydraulic version, providing unmatched versatility for different onboard power configurations.
Ideal Applications:
- Mainsail traveler systems
- Self-tacking jib sheets
- Inhauls, outhauls, and other sail controls requiring constant line tension
- Short-handed and performance sailing setups
Why Choose the Harken FlatWinder™ 500?
The FlatWinder™ 500 is a cutting-edge alternative to traditional winches, offering automated, efficient, and compact line management. Whether you sail for performance or cruising, this powered block enhances safety, reduces fatigue, and optimises sail control—making it an essential upgrade for any modern sailing yacht.
Spécifications
| Voltage Variant (V) | 12 ou 24 ou 48 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 6 |
| Cordage recommandé – Ø Max (mm) | 10 |
| Hauteur d’entrée du cordage (mm) | 29 |
| Charge de travail (kg) | 500 |
| A (mm) | 242 |
| B (mm) | 273 |
| C (mm) | 152 |
| D (mm) | 53 |
| E (mm) | 71 |
| F (mm) | 231 |
| G (mm) | 363 |
| H (mm) | 484 |
| Poids (g) | 22500 |
