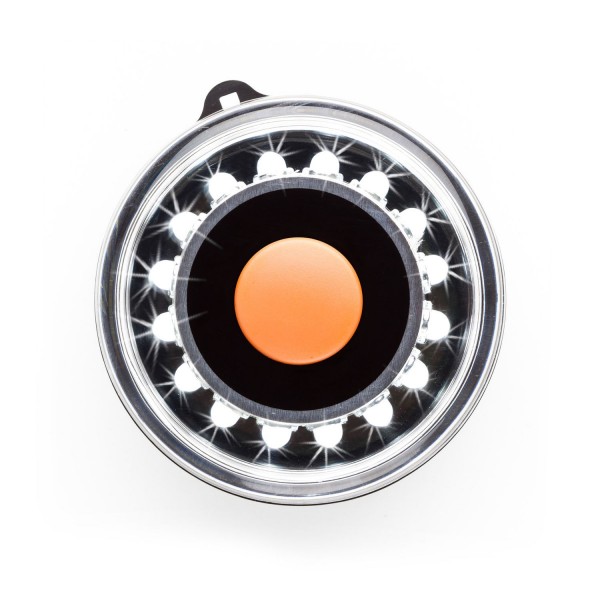

Navilight white 360° 2NM with magnet base

91,90 € 87,31 €
5% Off
SKU:
N/A
Brand: Navisafe

30-day money-back

 14-day returns

 Express shipping available

Share :

The Navilight 360° 2NM – US Coast Guard approved for 2 nautical miles is the most versatile light of Navisafe's range of battery operated portable navigation lights and includes a 360° All-round light, 225° Masthead light, 135° Sternlight, Flashing light, Anchoring light and a Cabin light. It uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.


Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.


On a power-driven vessel underway of 12 meters or more in length but less than 50 meters in length:

  • Sternlight

  • All-round white light

On a power-driven vessel underway of less than 12 meters in length:

  • Masthead light

  • Sternlight

  • All-round white light

On a power-driven vessel underway of less than 7 meters in length whose maximum speed does not exceed 7 knots:

  • All-round white light

Rowing / Paddle vessels:

  • All-round white light

Anchored vessels and vessels aground:

  • All-round white light


Modes / approximate burn time:

  • 16 white LED, 360° All-round light, Anchoring light / 15hrs

  • 16 white LED, 360° Flashing light / 85hrs

  • 10 white LED, 225° Masthead light / 24hrs

  • 6 white LED, 135° Sternlight / 32hrs

  • 4 white LED, 360° Cabin light / 72hrs


The double magnetic system consists of the Navilight with its magnetic base, a separate magnetic plate and a screw for attaching the plate to a wooden deck for example. It also holds the light safely on many plastic boats, biminis or any other material by placing the light on top and the magnetic plate underneath. Additionally Navisafe offers a wide range of specially designed magnetic mountings such as the Clamp-on Rail mount, Bendable Suction-mount and the Telescopic Poles that easily allow the lights to be attached.


NOTE: If the magnetic mounts are used do not place the separate magnetic plate between the Navilight and the mount.


Please always secure the Navilight with the supplied lanyard to the mount (Clamp-on Rail mount, Telescopic Pole) or to something which is securely fixed on the boat if you use the Bendable Suction-mount.

Spécifications

Visibility (NM) 2
Ø Extérieur (mm) 68
Hauteur (mm) 35
Résistant à l'eau 20m depth
Type de baterie 3x AAA
Poids (g) 113
