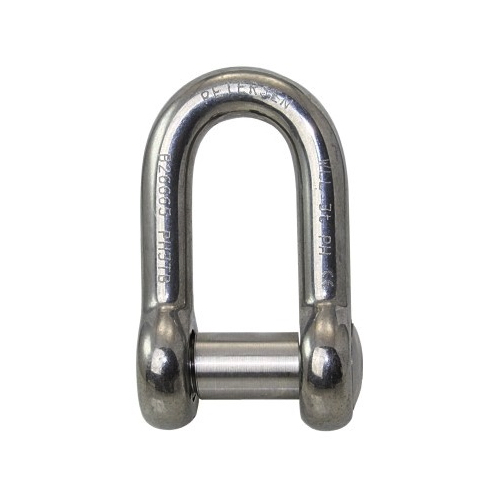

Specifications for Petersen High Tensile Stainless Steel D Shackle - 3T, 16mm, Type B
| Ø axe (mm) | 16 |
| Charge de travail (kg) | 3000 |
| B (mm) | 12,7 |
| J (mm) | 25 |
| L (mm) | 50 |
| Poids (g) | 350 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features
- Manufactured from 17/4PH precipitation hardening martensitic stainless steel
- Excellent for general lifting applications - high tensile properties while avoiding work hardening
- Corrosion resistance similar to 18/8 grade steels
- Factor of Safety 6:1
- Thick lugs on the shackle pins ensure that the product is both durable and dependable
- Available with 4 pin types - Standard Screw Collar Pin (A Type), Extended Screw Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)
Quality Features
- Every shackle is proof load tested to 2 x WLL and certified at our manufacturing facility in the North East of England
- All shackles are manufactured in accordance with the Machine Directive 2006/42/EC
- Inspection certificate BS EN 10204 3.1 available on request
- High quality finish and excellent polish
Typical Applications
- General lifting in off-shore applications
- General lifting and tethering in leisure marine applications
- General lifting purposes
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ø axe (mm) | 16 |
| Charge de travail (kg) | 3000 |
| B (mm) | 12,7 |
| J (mm) | 25 |
| L (mm) | 50 |
| Poids (g) | 350 |
