Specifications for Tylaska Dogbone DB10 Aluminium
| Cordage recommandé – Ø Max (mm) | 6 |
| Charge de travail (kg) | 950 |
| Charge de rupture (kg) | 1900 |
| A (mm) | 40 |
| B (mm) | 10 |
| C (mm) | 7 |
| Poids (g) | 5,7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

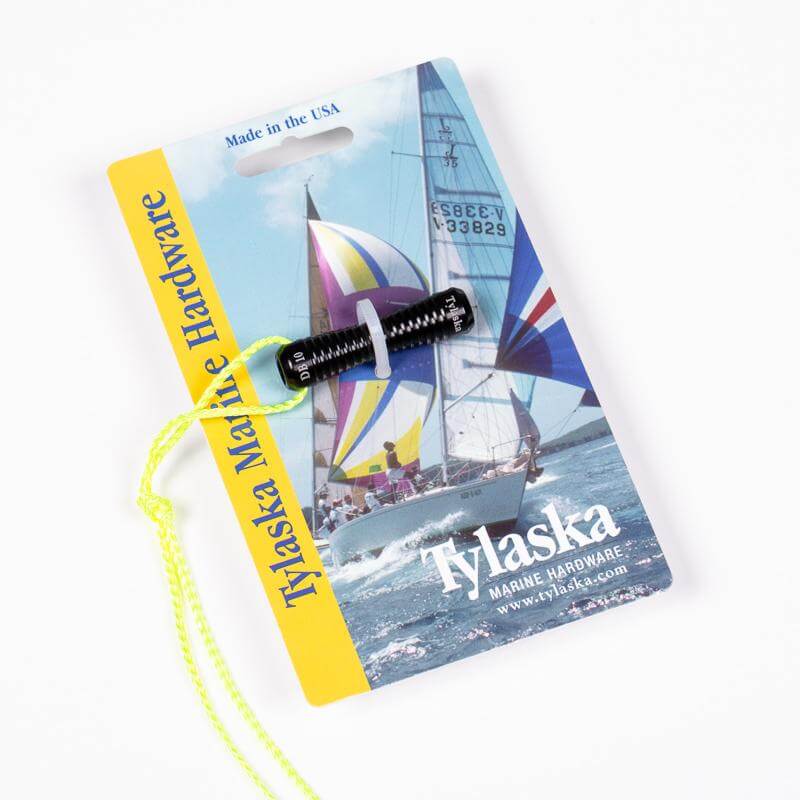

The Tylaska Dogbone DB10 is made from high strength, 7000 series, heat treated Aluminum. The dogbone is a very convenient way for attaching the halyard line to the headboard as you can maximize sail height without the added length of a conventional shackle. It also works well for jib and spinsheets, outhauls, the connection of soft loops used for attaching blocks to deck fittings, and numerous other rigging applications. Unlike a knot, the dogbone connection does not jam up under tension and can be quickly attached or detached. The Tylaska Dogbone DB10 is recommended for use with 6mm lines.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 6 |
| Charge de travail (kg) | 950 |
| Charge de rupture (kg) | 1900 |
| A (mm) | 40 |
| B (mm) | 10 |
| C (mm) | 7 |
| Poids (g) | 5,7 |
